VFW-25000 Computer Control Vertical Site Winding Machine for FRP Tank

VFW-25000 Computer Control Vertical Site Winding Machine for FRP Tank

Quick Information

• Place of Origin:China

Description

Product details

VFW-25000 computer control vertical site winding machine is the most advanced winding machine (hereinafter called Winding Machine) with super large diameter developed by our company, absorbing the foreign advanced technique. It is controlled by computer, specially used for site winding of large caliber FRP tanks. This machine can produce FRP tanks with the diameter from 4m to25m with the suitable mandrel. The control center of this machine is industrial computer made in Taiwan. Once input the parameters of winding product, the computer can finish the design of linearity of the tank automatically, and then control the compound movement of mandrel rotation and the shift of trolley, put the fiberglass immersed by resin on the inner liner fully in order. This winding machine is the combination of technique and science, such as mandrel rotation, shift of the trolley, and layout of winding roving are all precisely controlled by computer software. The FRP products wound by this machine are widely used in chemical industry, petroleum, and brewery and so on.

Parameters of the Winding Machine

Winding diameter scope: 4m-25m
Max height for each section: 6m (Note: if it is more than 6m, it can be formed by many sections )
Winding angle: 60°-90°
Max rotating speed of the mandrel: 4.6rpm
Woven roving strands: 70*
Productivity: 500Kg/h*


Price

• Price Condition :FOB

• Price :USD200000 / set

• Delivery Port :Tianjin

Packaging & Delivery

• Packing :pallet

• Delivery Lead Time :10-30 days

• Minimum Order :1set

• Supply Ability :1 set per month

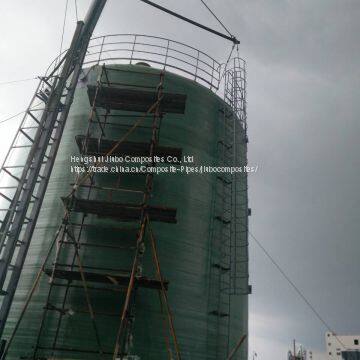

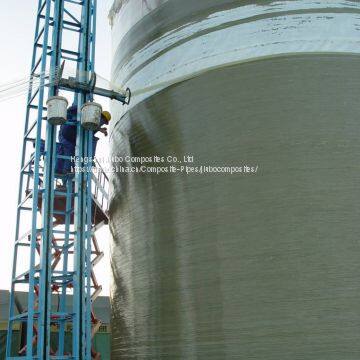

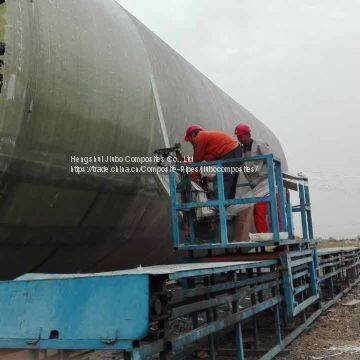

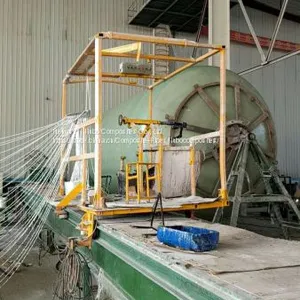

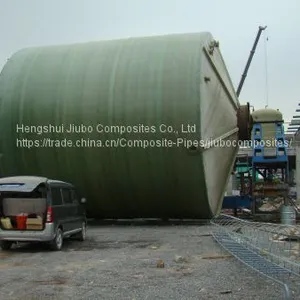

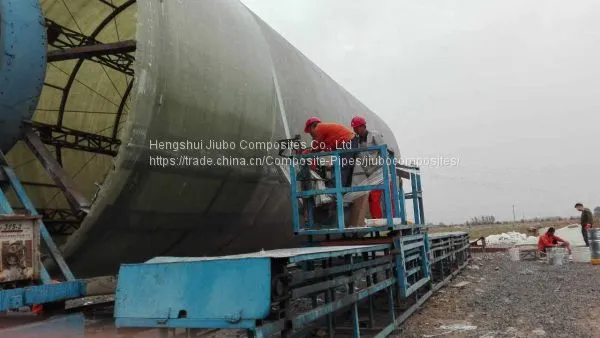

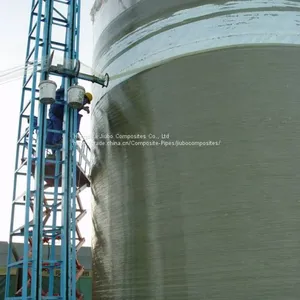

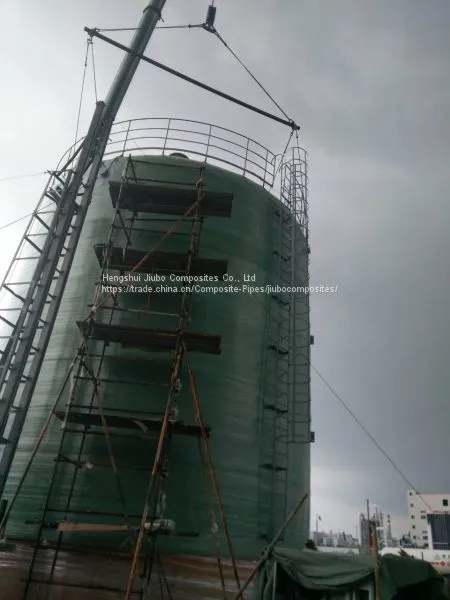

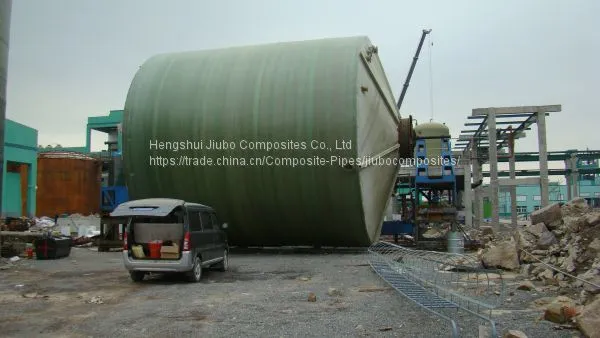

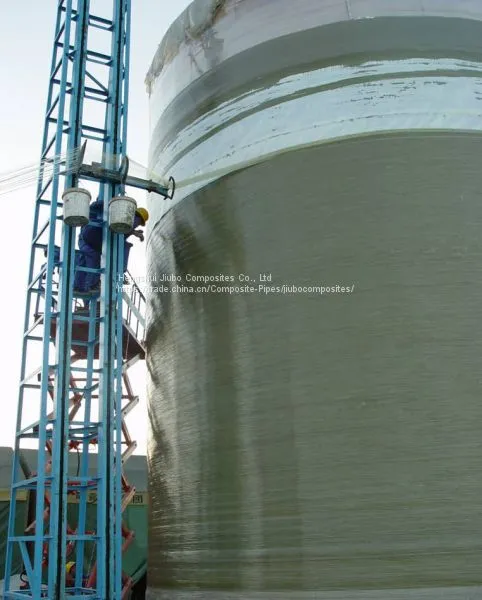

Product Image
