Product Introduction

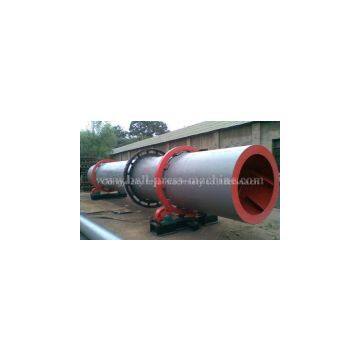

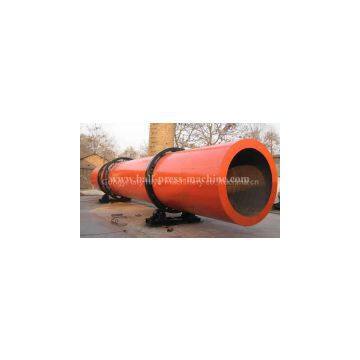

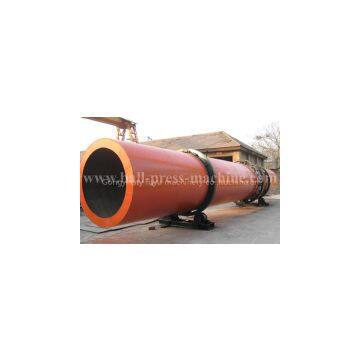

Mineral Powder drying machine is widely used in building materials, metallurgy, mineral processing, chemical, cement and other industries, mainly used for slag, limestone, clay, sand, quartz sand, water, slag and other wet and heavy materials. Slag drying production line, mainly by the rotating cylinder body, a wind guiding device, high-speed scattered equipment, lifting plate, automatic cleaning device, a transmission device, conveying equipment, air equipment, reducer, a supporting device and a sealing device etc. parts. The full set of drying equipment design is reasonable, the production of excellent, stable performance, advanced technology, high output, low energy consumption, small area, high degree of mechanization, the advantages of high degree of mechanization.
Application Range
Mineral Powder drying machine, drum dryer is a kind of material handling a large number of materials. As a result of the operation is reliable, the operation is flexible, the adaptability is strong, the processing capacity is large, and is widely used in metallurgy, building materials, food, light industry, chemical industry, coal, pharmaceutical industry. Rotary drum dryer is generally used in granular materials, and can also be used for some of the method of the infiltration of the material to dry sticky paste material or higher moisture content of the material. It has the advantages of large production capacity, wide application range, small flow resistance, operating on a wide range of allowable fluctuations, easy operation, etc.. Slag dryer, drum dryer commonly used in dry sand, slag, slime, chicken manure and cow dung etc.
Working Principle
The dry wet material is sent to a hopper by a belt conveyor or a bucket elevator, and the feeding machine of the hopper is fed into the feed end through the feeding pipe. The inclination of the feeding pipe is greater than the natural inclination of the material, so that the material can be smoothly flowed into the dryer. The drying cylinder is a rotating cylinder with a horizontal line and a slight inclination. Material from the higher end of the join, heat carrier by the low-end entry, and materials into countercurrent contact, is also set body and materials together and flow into the cylinder body. With the rotation of the cylinder, the gravity of the material is running at the bottom of the bottom. Wet material in the cylinder body to move forward in the process, directly or indirectly get the load of the heating element to heat, so that the wet material to be dried, then at the feed end of the screw conveyor belt machine or send out.
In the slag powder drying machine barrel body wall is provided with a copy board, which is the role of the material copied and spread, so that the contact surface of the material and air flow increased, in order to increase the drying rate and promote the material forward. Heat carrier is generally divided into hot air, flue gas etc.. Heat carrier by the dryer, generally requires the cyclone in the gas with the material collected. To further reduce the amount of dust in the tail gas, but also by the bag type dust collector or wet dust collector and then discharge.
Technical Parameters
Model: FYD-1.2*10
Capacity: 4-6t/h
Power: 7.5kw
Rotation Speed: 4.8r/min
Reducer Model: ZL 50-16-I
Weight: 13.5t
