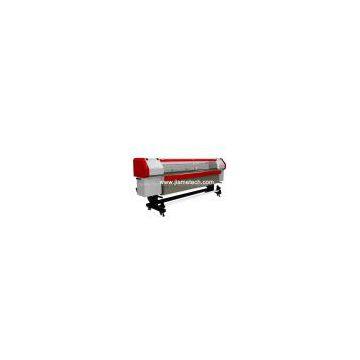

Xaar Proton 382/35pl Printer with High Quality

Model

JM-XR3212

JM-XR3208

JM-XR3206

JM-XR3204

Print head

XAAR 382/35pl Print Head

Number of Print Head

12 heads(4color*3)

8 heads(4 color*2)

6 heads(6color)

4 heads(4color)

Maximum Print Width

3200mm (126 inch)

Maximum Media Width

3200mm (126 inch)

Resolution

1440Dpi

Print Speed

2 pass 120m²/h

2 pass 90 m²/h

2 pass 60 m²/h

2 pass 60 m²/h

3 pass 90 m²/h

3 pass 72 m²/h

3 pass 45 m²/h

3 pass 45 m²/h

4 pass 50 m²/h

4 pass 61 m²h

4 pass 30 m²/h

4 pass 30 m²/h

Ink

Type

Solvent Ink or Eco Solvent Ink

Color

Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta

Ink Supply System

Low Ink Detector, Auto or Manual Ink Supply System

Media

Types

Flex Banner, PVC, Advertising Cloth, Adhesive Vinyl, Mesh, One Way Vision,Papers etc

Auto Media Feeding & Take-up System

Equipped

Print Head Cleaning System

Automatic Cleaning System

Automatic Dry-preventing System

Pre-heater & Dry System

Adjustable Pre-heating, Adjustable Post-heating and Cooling Fan

Clamp

Equipped

Print Interface

Optical Fiber

Print Head Height

2 to 5mm Above Media Adjustable

RIP Software

Photoprint

Input Power

100~240V,50Hz/60Hz
