Polyester Fiber Wedge, Polyester Glass Fiber Wedge, Polyester Fibre Wedge.Insulation Polyester Wedge,Dry Transformer Wedge,Transformer Wedge,

specialized in manufacturing wedge, Polyester Fiber Wedge, Polyester Glass Fiber Wedge, Polyester Fibre Wedge.Insulation Polyester Wedge,Dry Transformer Wedge,Transformer wedge.

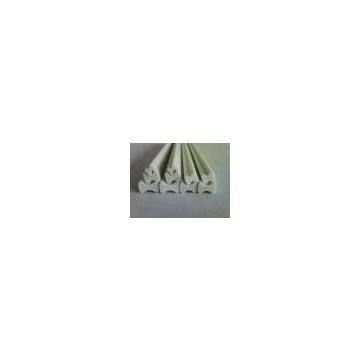

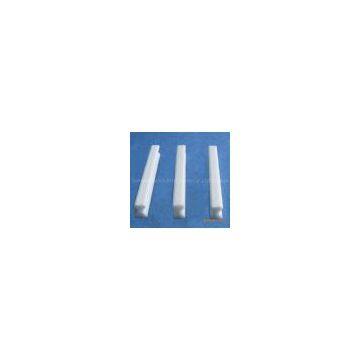

Polyester fiber wedge is made from polyester yarn varnished with epoxy resin heating and pressurizing and curing.With high mechanical and dielectric performance. Widely used in transformers,rectifler and other electrical equipment as insulation material.

Temperature classification:B ,F,H grade.

Normal size:

I-bar: 8*10mm，6*6mm，6*8mm，5*10mm，6*10mm,8*8mm,10*10mm etc.

Riglet: 10*2mm，10*3mm，10*4mm，10*5mm，19*6mm，40*20mm etc.

Corner:：8*8mm，10*10mm，6*6mm etc.

Flat angle: 45*15*5mm，45*15*10mm

We can produce any sizes according client’s request.

Email:saleinsulation at kindinsulation com
