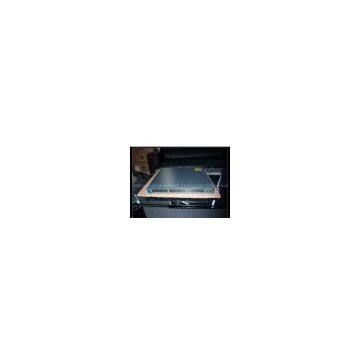

Ethernet Switch WS-C3560G-48TS-S

Product Specifications Product Name Catalyst 3560 48 Port 10/100/1000T and 4 SFP Standard Image Product Type Ethernet Switch Dimensions 1.73" Height x 17.50" Width x 16.10" Depth Expansion Slots (4 Total) SFP (mini-GBIC) Input Voltage 110 V AC 220 V AC Interfaces/Ports 48 x RJ-45 10/100/1000Base-T LAN 1 x RJ-45 Console Management Number of Ports 48 Product Line Catalyst Product Series 3560 Input Voltage Range 100 V AC to 240 V AC Address Table 12 K MAC Address - Maximum Flash Memory 32 MB Protocols WCCP,LACP,DHCP,DTP,PAgP,RSTP,HSRP,UDLD RIP v1.0,RIP v2.0,PIM-SM,PIM-DM,DVMRP,STP MSTP,ARP,TCP/IP,TACACS+,NTP,SSH,SNMP,Telnet Power Source Power Supply Layer Support 2,3,4 Standard Memory 128 MB Connectivity Media Category 3 UTP 10Base-T Category 4 UTP 10Base-T Category 5 UTP 10/100/1000Base-T Altitude 10000 ft Operating 15000 ft Storage Operating System o Standard Multilayer Software Image (SMI) installed Performance 64Gbps Switching Fabric 38.7Mpps Forwarding Rate For 64-byte Packet Power Consumption 160 W @ Maximum Security Features o Secure Shell (SSH) Protocol Version 2 o (IDS) to take action when an intruder is detected. o One thousand access control entries (ACEs) are supported o TACACS+ and RADIUS authentication enable centralized control of the switch o IEEE 802.1x allows dynamic, port-based security, providing user authentication o Port security secures the access to an access or trunk port based on MAC address o Unicast MAC filtering prevents the forwarding of any type of packet with a matching MAC address. o Port-based ACLs (PACLs) for Layer 2 interfaces allow application of security policies on individual switch ports. o Cisco security VLAN ACLs (VACLs) on all VLANs prevent unauthorized data flows from being bridged within VLANs. o Bidirectional data support on the Switched Port Analyzer (SPAN) port allows the Cisco Secure Intrusion Detection System. Temperature 32F (0C) to 113F (45C) Operating -13F (-25C) to 158F (70C) Storage Thermal Dissipation 580.06 BTU/h @ 156.50 W Memory Technology DRAM Network Technology 10/100/1000Base-T
