Help CenterPvc Windowsill/siding Panel Extrusion Machine
Related Products
-
Pvc Corner Beads Profile Extrusion LineUS$ 45000 - 45000MOQ: 1 Piece -
Pvc Angle Beads Profile Extrusion MachineUS$ 45000 - 45000MOQ: 1 Piece
-
PVC Window Door Profile Extrusion LineUS$ 42000 - 42000MOQ: 1 Piece
-
pp pe Wood Plastic Wpc Foam Decking Profile Extrusion LineUS$ 45000 - 45000MOQ: 1 Piece
-
Pvc Wood Plastic Wpc Foam Door Plate/board Extrusion LineUS$ 135000 - 135000MOQ: 1 Piece
Introduction
This production line is mainly used for producing of PVC windowsill, construction board, wide door plate, cabinet board, indoor/outdoor decorating material, etc.

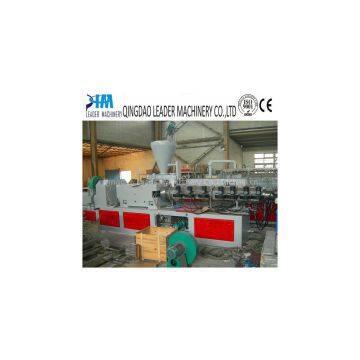

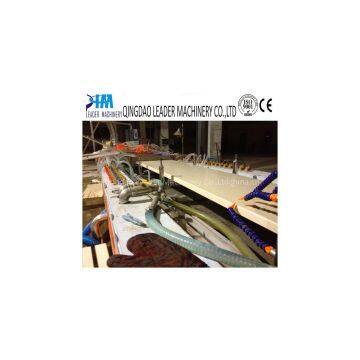

The whole production line includes conical screw extruder, vacuum calibration table, haul-off machine, stackers, as well as other optional auxiliary units. With powerful chiller to guarantee the calibration effect of the products, the extrusion width can be optional between 600-1250mm.
Characteristics
● International brand speed governor bears the advantages of the wide governing range, high thermo-control precision, convenient and reliable operation, etc.
● Caterpillar haul-off unit adopts precision reduction motor, with speed controlled by inverter. it has the advantages of the reasonable structure, large traction power, stable hauling, etc.
● Cutting unit bears the advantages of reliable working, high-precision cutting, etc.
● PLC programming control of famous domestic brand controlling system is adopted for the auxiliary units, which is stable and reliable.
Production flows:
High speed mixer→conical twin screw extruder→die head→vacuum calibrating table-haul off machine→film laminating machine→cutting machine→stacker
Main technical data:
| Model | YF-600 | YF-800 | YF-1000 | YF-1250 |
| Max width of products(mm) | 600 | 800 | 1000 | 1250 |
| Max thickness of products(mm) | 20-45mm | 20-45mm | 20-45mm | 20-45mm |
| Model of extruder | SJSZ-80/156 | SJSZ-92/188 | SJSZ-92/188 | SJSZ-92/188 |
| Max output, kg/h | 360 | 500 | 600 | 600 |
| Cooling water,m³/h | 12 | 13 | 15 | 18 |
| Compressed air m³/min | 0.5 | 0.6 | 0.8 | 1 |
