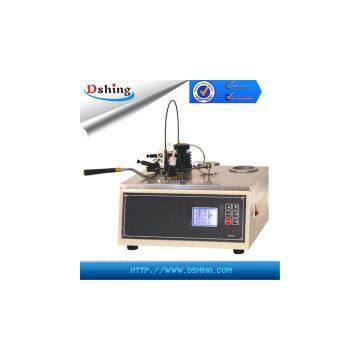

DSHD-261-1 Pensky-Martens Closed Cup Flash Point Tester

A:Brief description:

    DSHD-261-1 Pensky-Martens Closed Cup FlashPoint Tester is manufactured as per standards GB/T 261-2008 Determination ofFlash Point(Pensky-Martens Closed Cup) and ASTM D93.

    DSHD-261-1 Pensky-Martens Closed Cup FlashPoint Tester is suitable to make determination of the closed cup flash point ofthe petroleum products which flash point over 40℃.

B:Main advantages:

  1. Single chip microcomputer controltechnique. LCD screen displays, English man-machine interaction interface. Theheating power is continuously step-less adjustable. The rate of heating up isexact, Easy setting for parameters.

  2. The LCD screen has prompting menu, promptinginput operation interface. It shows the setted parameters, real-timetemperatures and other test parameters. Press the “record” button when theflash point appears. The screen will show and reserve the flash point.

  3. The structure is newly design and small. Stainlesssteel table-board looks clean and beautiful. It can be used as long as equippedwith gas or other civilian fuels. It is easy to use and test results exact.

C: Main technical specifications and parameters

   1.Power supply：AC( 220±10% )V, 50Hz.

   2.Heating device:(1) The furnace is siliconcarbide material.Power is 600W heating wire.

              (2)The heating power isadjustable from 0 W to 600W.

   3.Rate of sample’s heating up ：Procedure A: (5～8 )℃/min；

      Procedure B :(1～1.5)℃/min；

      Automatically control

   4.Electric stirring device :(1)Stirringmotor:（BYGH101stepping motor）

                        (2) Driving mode: flexibleshaft

                        (3) Stirring vane size:8mm×40mm

   5.Stirring rate：Accord with therequirements of GB/T 261-2008.

                         (1) (90～120 ) turns/min,suitableto test procedure A.

                         (2)(250±10 )turns/min,suitable to test procedure B.

   6.Igniting device: (1) Igniting source: gas（or other civilian fuels，the same below）

                  (2) Bore diameter: 0.8mm

   7.Temperature testing probe ：PT100

   8.Ambient temperature ：≤ 35℃

   9.Relative humidity：≤ 85％

  10.Power consumption of overall unit：≤ 650W
