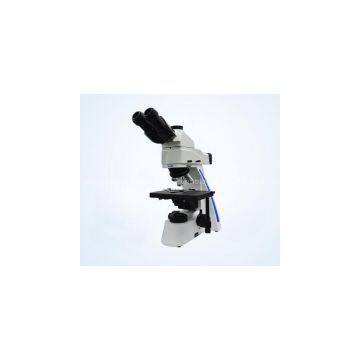

MF31 Routine Epi Fluorescence Microscope in LED Fluorescence Illuminator

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MSHOT		Place of Origin	China
Model Number	MF31

Product Description

MF31 LED Fluorescence Microscope

MF31 fluorescence microscope brings you a vivid full-range view and very high contrast fluorescence imaging by adopting excellent quality infinity optical system combined with blue LED fluorescence illuminators. Meanwhile, it will increase the samples' visibility and contrast in the bright field with Abbe condenser. With excellent imaging performance and east to operate, MF31 having been widely applied in the area of Medical diagnostic, teaching & researching, and biological research etc.

Features

LED fluorescence illumination
Both bright field and fluorescence are illuminated by LED
Compact design in one unit

Advantages

Long service life, ready to use, no need to adjust optical path during operating
Easy to operate, no need further train
Phase contrast, fluorescence observation supported and post upgrade

Benefits

Energy Conservative and environment-friendly
No need debugging, higher efficiency
Mufti-functional, more observation methods for option
Cost effective for confirmed fluorescein.

Items	Specification
Optical system	Infinity optical system
Observation tube	Trinocular tube, triple lever
Observation tube	30°inclined; Pupil distance 53~75mm
Eyepiece	WF10X/FN22mm
Fluorescence illumination system	3W blue LED
Fluorescence illumination system	EF:420-480nm /DM:500nmlP /BF:510nmlp
Nosepiece	Quadruple nosepiece with backward
Infinity plan Achromatic objective	4x/0.1W.D.=21.5mm
	10x/0.25 W.D.=7.5mm
	40x/0.65 W.D.=0.65mm
	100x/1.25 W.D.=0.185mm
Mechanical stage	Double layer moving stage, Graphene surface, Sizes: 210x140mm; moving range:76x50mm
Focusing system	Fine and coarse adjustment with tension and limited stopper, 2um scale, coarse adjustment circle moving range 40mm, fine adjusting circle moving range 0.2mm
Focusing system	Total moving range: 24mm
Abbe Condenser	NA.1.25, Built-in aperture diaphragm
Transmission Illumination system	5W white LED , brightness adjustable
Camera interface	0.5x C-mount
Operating environment	Temperature: 5~40℃(41~104°F), Max. Relative humidity 80%, 31℃
Power Source	AC, 100-240V, 50~60Hz
