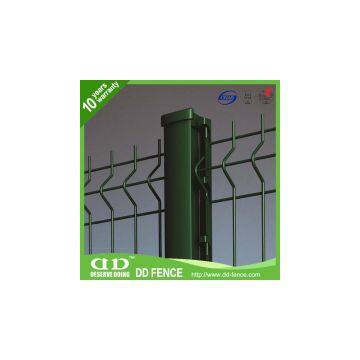

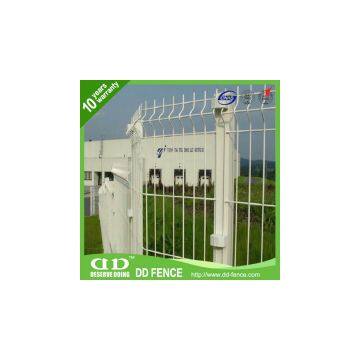

Powder Coated Profiled Panel System

Welded mesh fence is a fence made of galvanized wire. It is concise but not simple and you can choose different color, size and posts.

Panel specifications:

Wire Dia. 5.0mm, 4.5mm, 4.0mm, 5.5mm, 6.0mm, 3.5mm, 4.8mm and others.

Mesh size: 200x50mm, 100x50mm, 200x55mm, 100x55mm, 150x50mm, 150x55mm, 120x50mm, 120x55mm, and others.

Length: 2500mm, 2255mm, 2000mm, 3000mm

Height: 630mm, 830mm, 1030mm, 1230mm, 1530mm, 1730mm, 1630mm, 1830mm, 1930mm, 2030mm, 2230mm, 2430mm.

Post: Hot dipped galvanized and powders coating

Size: 60x60x1.5mm, 60x60x2.0mm, 60x40x1.5mm, 60x40x2.0mm, and others.

Height: 300 - 700mm more than panel's height, or same as the panel and with the bottom base.

Colour choose: All Ral colors

RAL6005 GREEN, RAL9010 WHITE, RAL7016, RAL7030, RAL9005 BLACK, RAL9006, RAL8017 BROWN and others.

Galvanization weight:  for panel 1)40-60g/m2-80g/m  2) 275g/m2  or 3) 400-500g/m2  ,

                                         for post   1)40-60g/m2  2) 200g/m2  3) 400-500g/m2

Pvc coating : 400-500 microns

Powder coating:80-100microns
