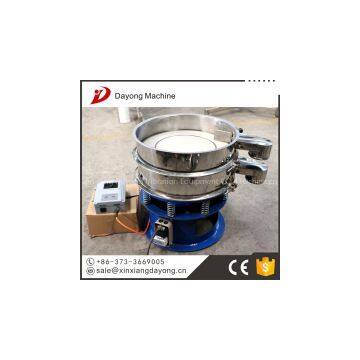

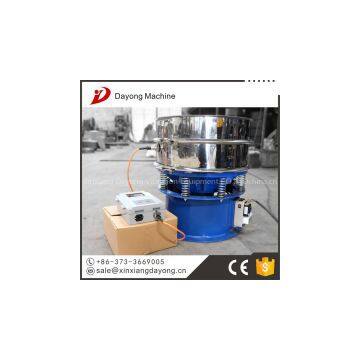

DYC-1000 Ultrasonic Vibrator Screen Sieve

Ultrasonic vibrator screen

Company Profile

Dayong vibration equipment for many years the vibration of the manufacturing machinery, mining machinery throughout the country.We insist on focusing on the leading advanced technology of screening and filtering.Our production is famous for advanced design, precise manufacture, stable quality and reasonable price. We are expecting to establish a long-term and win-win business relationship with the customers.

Features

1.Configured for classification, sieving, cleaning and washing,Up to 5 times outlet compared than common sieving machine.
2.Special design of cover that is convenient for observation material on the screen surface.
3.The IP54 protection rank, F level insulation, though work 24 hours a day also can greatly extend the vibration motor's service life; motor can run in the bad environment.
4.The rubber ring is mounted between the layers,which is locked with fastening belt outside
5.Can separate very fineness powder and Adjustable weirs control the flow of oversize and retention time in the sifter.
6.Various structure providing to customer. Containing carbon steel sprayed and stainless steel.Excellent quality.

Working principle

An ultrasonic energy converter added to the common screening machine can produce the ultrasonic frequency to make the screen vibrate continuously based on the low frequency vibration caused by the electric motor. Thus the oversize particles are forced to upspring and the adsorptive materials are broken up, at the same time, the ultrasonic vibration can be conducted thoughout the whole screen net by the net wire to prevent the mesh from being plugged to realize a better screening.

Application

1.Chemical industry:resin, pigment,cosmetic, coatings, chinese medicine powder
2.Food industry: sugar powder, starch, salt, rice noodle, milk powder,egg powder,sauce,syrup 3.Metallurgy, Mine industry: aluminum poweder, copper powder, ore alloy powder, welding rod powder
4.Medicinal industry: all kinds of medicine
