Vibrating Wet Screen Sieve

vibrating wet screen sieve

Company profile

Dayong Vibration Equipment Co. , Ltd. is a professional manufacturer of mechanical vibration of the professional design , development , manufacture.At present we have established a long-term cooperative partnership with the United States, Germany, Turkey, Indonesia, Tunisia and other countries.We insist on focusing on the leading advanced technology of screening and filtering.and are good at the design and production of vibratory screening machines.

Application

1) Quarry industry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.

2) Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.

3) Chemical industry: fertilizer industry etc.

4) Mineral-selecting Industry: suitable for grading and classifying lump, powder substance, etc.

5) Metallurgy, construction, building materials, abrasives, and other industries.

Features and Fuctions

1.Largest processing capacity in the industry;

2.Unique screen design, result in higher capacities, longer screen life and no material clogging;

3.Heavy duty feed hopper and extension;

4.This product adopts the combined type screen stencil,relying on the centrifugal force and selection function from running roller

Work principle

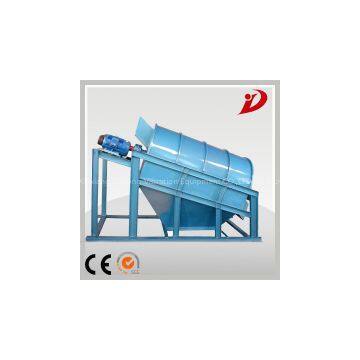

Trommel drum screen mainly consists of motor, reducer, drum units, racks, etc. Inclination of drum equipment, motor is connected by reducer & the drum unit, the drive drum rotate around its axis. When the materials go into the drum unit, due to the inclination and the rotation of drum unit, it makes qualified materials come out by the outer screen, substandard materials come out by the end of rotary screen.


Technical parameters

Model    Diameter(mm)    Capacity(m3/h)    Power(kw)    Length of Screen Surface(mm)
DYT-600    Φ600    1~5    3    1500-3000 or as requested, It is related to the sifting ratio of the material

Model    Diameter(mm)    Capacity(m3/h)    Power(kw)    Length of Screen Surface(mm)
DYT-800    Φ800    1~10    3    1500-3000 or as requested, It is related to the sifting ratio of the material
Model    Diameter(mm)    Capacity(m3/h)    Power(kw)    Length of Screen Surface(mm)
DYT-1000    Φ1000    20~30    3    1500-3000 or as requested, It is related to the sifting ratio of the material

Model    Diameter(mm)    Capacity(m3/h)    Power(kw)    Length of Screen Surface(mm)
DYT-1200    Φ1200    20~50    3    1500-3000 or as requested, It is related to the sifting ratio of the material

Model    Diameter(mm)    Capacity(m3/h)    Power(kw)    Length of Screen Surface(mm)
DYT-1500    Φ1500    40~80    5.5    1500-3000 or as requested, It is related to the sifting ratio of the material

Model    Diameter(mm)    Capacity(m3/h)    Power(kw)    Length of Screen Surface(mm)
DYT-1800    Φ1800    80~150    7.5    1500-3000 or as requested, It is related to the sifting ratio of the material

If you are interested in our products,pls email or call us.

Welcome to visit our factory and look forward to your cooperation !
