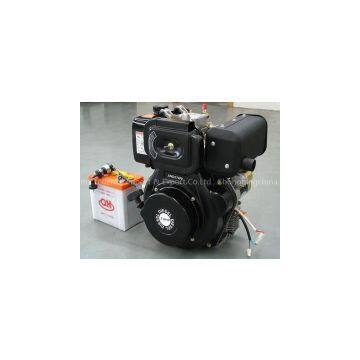

General Purpose Powerful 5hp DIESEL ENGINE With Electric Starter, Ce Euro V, EPA

Single-cylinder,vertical,air-cooled,4-stroke,direct injection diesel engines

Model NoSJ178F  (Recoil starter)

TypeSingle-cylinder,vertical,air-cooled,4-stroke,direct injection

Bore×Stroke (mm)78×62

Displacement(cc)296

Compression ratio21:01

Rated power/ Rated speed (Hp/r/min)5.0/3000         5.5/3600

Max power/ Max speed (Hp/r/min)5.5/3000         6.0/3600

Lubricating systemPressure splashed

Starting systemRecoil starter

Rotation direction(face to the output axle)Anticlockwise

Fuel type0#、-10#、-20# diesel

Fuel tank capacity (L)/(us.gal)3.5/0.92

Fuel consumption/related rotation speed (g/hp.h/r/min)206/3000         215/3600

Lube oil typeCD grade or SAE 10W-30, 15W-40

Lube oil capacity (L)/(us.gal)1.1/0.29

Starting motor capacity (V、kW)12V   0.8kW

Charging generator capacity (V、A)12V    3A

Battery capacity (V、Ah)Above 12V 20Ah

Package dimension（L×W×H）mm480X450X525

Net weight(kg)≤33
