Brand Name:LieDiao
Place of Origin:China
3 wheels lifting pulley block (Hook type and Ring type)
Details
Wheel rope lifting pulley is an important lifting tool with simple structure and use conveniently. It can change direction of pulley, steel rope and high weight cargoes, especially series of pulley combined with windlass, mast and other lifting machinery. It widely used in installation in construction.
Features
1. High-quality materials: the overall body is forged by high-quality steel, light weight, high strength, hardness, durable.
2.Hook: thicken type hook special made for pulley.The hook is precisely forged by round steel with higher bearing capacity. If overload it will not easy to break, it also installs with insurance devices.

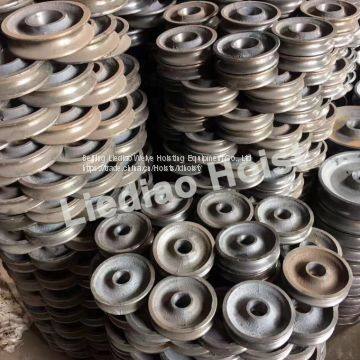

3.Lifting pulley: It is forged by high-quality steel, groove design is reasonable. With the coating treatment of the surface, it will not hurt the rope and reduce power loss.
4.High-quality directional wheel: It adopts high grade alloy steel and precisely made with hot quenching, which is durable and high strength.
5.The pulley block can hang in various small crane or installed in fixed on the range.
6.Pulley block divides ring and hook two types. Capacity: 1-7 wheels , 0.5 T- 50 T
7.Simple structure, convenient operation. Special Specification can be made according to your requirements.
Specification
| Name | Capacity | Diameter (mm) | Wheel diameter(mm) | Weight | |
| (t) | normal | Max | (kg) | ||
| 3 wheels hoisting pulley (Hook type) | 1 | 6.2 | 7.7 | 71 | 3.15 |
| 2 | 7.7 | 11 | 85 | 6 | |
| 3 | 11 | 14 | 112 | 11 | |
| 5 | 12.5 | 15.5 | 132 | 20 | |
| 8 | 15.5 | 18.5 | 160 | 35 | |
| 10 | 17 | 20 | 180 | 47 | |
| 16 | 23 | 24.5 | 240 | 75.2 | |
| 32 | 31 | 35 | 355 | 237.5 | |
| Name | Capacity | Diameter (mm) | Wheel diameter (mm) | Weight | |
| (t) | normal | Max | (kg) | ||
| 3 wheels hoisting pulley (Ring type) | 3 | 7.7 | 11 | 85 | 8.2 |
| 5 | 11 | 14 | 112 | 16.83 | |
| 8 | 12.5 | 15.5 | 132 | 18 | |
| 10 | 15.5 | 18.5 | 160 | 47 | |
| 16 | 17 | 20 | 190 | 49.79 | |
| 32 | 26 | 28 | 280 | 187.8 | |
| 50 | 31 | 35 | 355 | 360 | |
single wheel lifting pulley block(Hook type and Ring type)
Details
Wheel rope lifting pulley is an important lifting tool with simple structure and use conveniently. It can change direction of pulley, steel rope and high weight cargoes, especially series of pulley combined with windlass, mast and other lifting machinery. It widely used in installation in construction.
1.High-quality materials: the overall body is forged by high-quality steel , light weight, high strength, hardness, durable.
2.Hook: thicken type hook special made for pulley.The hook is precisely forged by round steel with higher bearing capacity. If overload it will not easy to break, it also installs with insurance devices.
3.Lifting pulley: It is forged by high-quality steel, groove design is reasonable. With the coating treatment of the surface, it will not hurt the rope and reduce power loss.
4.High-quality directional wheel: It adopts high grade alloy steel and precisely made with hot quenching, which is durable and high strength.
5.The pulley block can hang in various small crane or installed in fixed on the range.
6.Pulley block divides ring and hook two types. Capacity: 1-7 wheels , 0.5 T- 50 T
7.Simple structure, convenient operation. Special Specification can be made according to your requirements.
Specification
| Product | Capacity | Diameter (mm) | Wheel diameter (mm) | Weight | |
| (t) | normal | Max | (kg) | ||
| single wheel hoisting pulley(hook type) | 0.5 | 6.2 | 7.7 | 71 | 1.75 |
| 1 | 7.7 | 11 | 85 | 3.25 | |
| 2 | 11 | 14 | 112 | 6 | |
| 3 | 12.5 | 15.5 | 132 | 10.5 | |
| 5 | 15.5 | 18.5 | 160 | 19 | |
| 8 | 20 | 23 | 210 | 35.2 | |
| 10 | 23 | 24.5 | 240 | 50.5 | |
| 16 | 28 | 31 | 315 | 113.5 | |
| Product | Capacity | Diameter (mm) | Wheel diameter (mm) | Weight | |
| (t) | normal | Max | (kg) | ||
| single wheel hoisting pulley(hook type) | 0.5 | 6.2 | 7.7 | 71 | 1.75 |
| 1 | 7.7 | 11 | 85 | 3.25 | |
| 2 | 11 | 14 | 112 | 6 | |
| 3 | 12.5 | 15.5 | 132 | 10.5 | |
| 5 | 15.5 | 18.5 | 160 | 19 | |
| 8 | 20 | 23 | 210 | 35.2 | |
| 10 | 23 | 24.5 | 240 | 50.5 | |
| 16 | 28 | 31 | 315 | 113.5 | |
CE :0141
Price Condition :FOB
Price :USD200 / set
Delivery Port :Tianjin
Packing :By carton box or Wooden box according to different
Delivery Lead Time :3-7 working days according to different quantities
Minimum Order :1 set
Supply Ability :2000sets/weeks
