Domestic CBB61 AC Celling Running Capacitors

Name: Domestic CBB61 AC Celling Running Capacitors
Brand: SANYING
SKU: 155855710
Availability: InStock

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

SANYING

Place of Origin:

China

Model Number:

CBB61

Taizhou Xinrong Electric Co.,ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

5 days

Brand Name SANYING

Place of Origin China

Model Number CBB61

Type Polypropylene Film Capacitor

Application Fan

Rated Voltage 110-630VAC

Operating Temperature 40/85/21

Package Type Through Hole

Capacitance 0.5uF-30uF

Features

1 None induction winding structure of metallic polypropylene membrance.

2 Use round plastic shell, and insulation sealed lid for sealing, plastic lid for sealing or resin for sealing.

3 Small volume, light weight, low loss, escellent self-healing performance.

4 Hig insulating resistance, little temperature changing inside,excellent stability of capacitance.

5 Non-toxic and non-leakage, profit environmental protection.

6 for frequency 50Hz(60Hz) AC single-phase electromotor.

7 Apply to electric fan,air conditioner, electrc water pumps and electromotor appliance etc.

8 It can help motors start and run.

We can design and manufacture products according to customers requirements.

Model Number: CBB61
	Structure picture

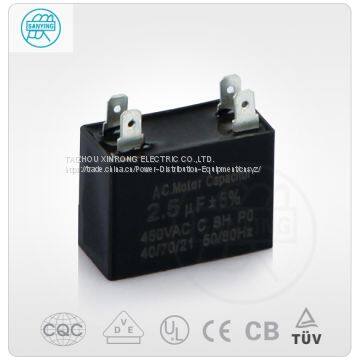

	Product picture
Electrical Parameter
Temperature	-40°C ~ 85°C
Capacitance Range	0.5-30μF
Capacitance Tolerance	5%(J)± 10%(K)
Dissipation Factor	Tanδ≤0.002
Nominal Frequency	50/60Hz
Factory Testing Voltage & Time	T-T: 2.0Un 10s;T-C: 2000VAC 10s
Insulation Resistance	T-T:≥3000MΩ.μF T-C:≥1000MΩ.μF
Rated voltage	110 ~ 630VAC
Endurance Voltage	Between the electodes : 2.0 Un 10S Between the electodes and the sheel: 2000VAC
Safety Class	PO
Life Class	B,C
Series Connection Inductance	It can be interconnected as required.
