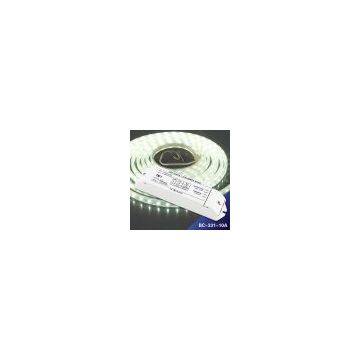

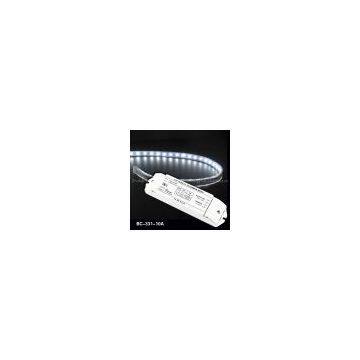

BC-331-10A PWM LED Dimming Driver
Brief Introduction
As LED and fluorescent lights are becoming more and more popular in the same project, but the dimming principles of LED and traditional fluorescent lights are different, so we developed a new 0/1-10V dimming controller which has solved the compatible problem of fluorescent dimming controller and LED illumination; this controller can dim both fluorescent and LED lamps at the same time.
Specifications
Model |
BC-331-10A |
Input Voltage |
DC12V-DC24V |
Max Current |
10A/CH x1CH |
Input Signal |
0/1-10V or PUSH DIM |
Output Signal |
Constant Voltage PWM |
Max Output Power |
120W(12V) /240W(24V) |
Product Dimension |
L168×W39×H30(mm) |
Package Dimension |
L170×W45×H35(mm) |
Weight |
90g |
Basic Features
1. Working voltage from DC12V~DC24V;
2. 1 output channel, 10A totally. Optical isolation protection for input & output;
3. PUSH DIM input voltage AC/DC12-265V;
4. 0/1 - 10V to PWM dimming signal conversion, linear or log
5. Support linear dimming or logarithmic dimming.
6. Short circuit protection; over current protection;
7. Compatible with many brand dimming systems.
8. Multi units can be worked together or use our power repeaters to control more lamps.
After-Sales
From the day you purchase our products within 2 years, if being used properly in accordance with the instruction, and quality problems occur, we provide free repair or replacement services.
