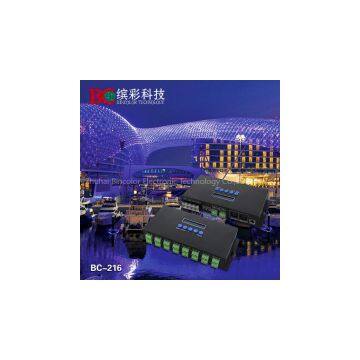

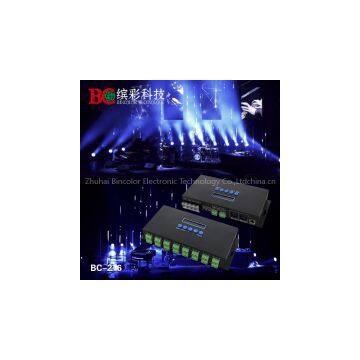

Zhuhai Bincolor BC-216 Ethernet-SPI/DMX Pixel Light Controller

This BC-216 Ethernet-SPI/DMX pixel light controller is dedicated to converting the Ethernet signal into SPI pixel signal, which is designed for large project with high-density pixel light, such as matrix panel lights, construction's contour lamp, etc. Besides converting Ethernet-based control protocols into various LED driving IC signal, it also outputs DMX512 signal at the same time, convenient for the connection of different types of led lamp, and to achieve the unified control of all kinds of led lamp in the same project.

Model：                                            BC-216

Input voltage：                          DC5V-DC24V

Output current：                3A*16CH（Built-in 5A fuse）

Input Ethernet control protacol：       Artnet

Output control IC：       2811/2801/6803/3001/8806/9813

Control pixels：                        340/CH*16CH

Output DMX512 channel：               2*512

Dimension：                              258*145*41mm

Weight(G.W.)：                                  1100g

Basic feature:

1. With LCD display and built-in WEB SERVER setting interface, easy operation.

2. Support Ethernet DMX protocol ArtNet, can be expanded to other protocols.

3. Multi SPI (TTL) signal output, up to 5440 pixels control.

4. Output DMX512 signal at the same time, convenient for the connection of  different types led  lamp.

5. Support various  LED driving  IC,flexible control.

6. Support online  firmware upgrade.

7. Adopt DIP plug-in design for the easily-worn parts, Users can repair the damage caused by wrong wiring or short circuit.

8. Built-in test mode, using a network interface with indicator light, work status is clear when at a glance.
