Used petrol station fuel dispenser fuel dispensing pump

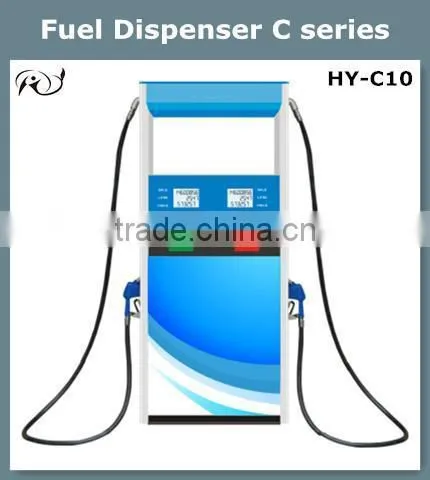

Fuel Dispenser C series

Feature:
1. Adopting combination pump, smaller shape and convenient maintenance.

2. Adopting painting-side for common type and stainless steel side for luxurious type .

3. Leading-static and Highly-hang oil pipe.

4. Features fueling as ration , resetting by computer and re-displaying when power cut

5. Big-size Aluminum nozzle holder.

6. Submersible pump to be optional.

7. Flow meter features high precision and strong reliability.

8. Excellent electromagnetic compatibility and strongly anti-jamming.

9. Be capable of connecting with central computer in gas station.

10.Conveniently combining and extending function.

11.To update IC card fuel dispenser is optional.

12.Electronic calibration.

13.Stop fueling by integer sale.

14.Leaves the communication ports, so it can communicate with the gas station management system.

15.Voice and printer(optional).

16.Can set decimal point for the display, so can be used in many countries with different currency rate.

Remark: Size, color and design of fuel dispenser can be produced according to customers’ requirement.

Technical specification:

Ambient temperature:  -40 °C to +55 °C

Max flow: 50L/min or 90L/min

Repeating error: ≤0.15%

Outlet pressure: ≤0.3MPa

Accuracy: ±0.3%

Noise: ≤70dB(A class)

Single volume range: 1-9999.99,1-999999.99

Humidity: 30% -90%

Inlet Pressure: ≥54KPa

Power: AC220V±20% , AC380V±20%(50±1)Hz

Unit price range:0-9999 , 0-999999(changeable)

Accumulative volume range: 0-9999999999.99

The type of fuel dispenser:

1, fuel dispenser with combination pump inside.(Bennett type, Tokheim type, Tasturno type or big flow type ,it is chosen by you )

2,The fuel dispenser with submersible pump inside , you can buy the fuel dispenser completely with submersible pump inside, or you can buy the fuel dispenser completely but except submersible pump.(the submersible pump type has blue jacket and red jacket, 220V or 380V )
