Working Principle

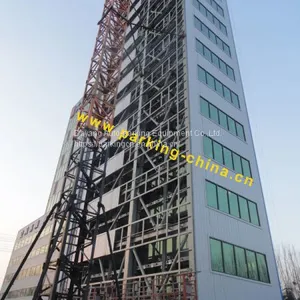

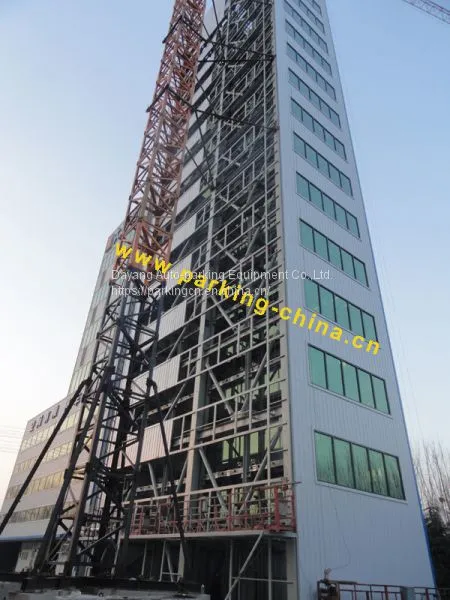

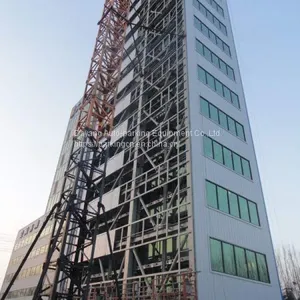

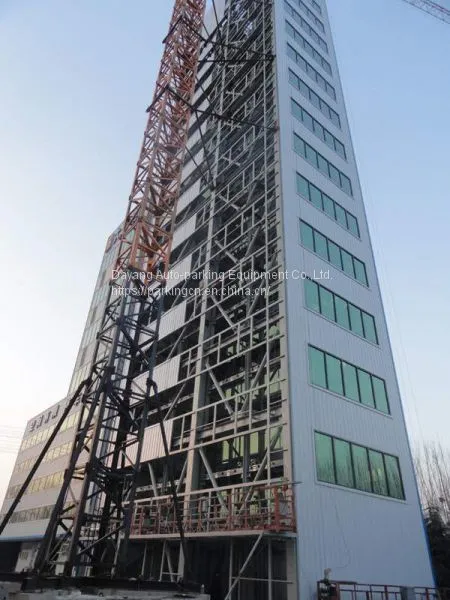

Total is 3 columns 15 levels. Cars will be put into both sides and the middle is a path for car going in and out. It adopts special technology of hydraulic puzzle parking with high speed and high levels. It has screen supervision and control system outside.
3 car area can park 30 cars!
Characteristics of the System
l Functions of safety protection against over going and crashing.
l The whole system has galvanized treatment.
l High speed of operation with high efficiency.
l This type of parking system is designed with frequency conversion device.
l Hydraulic drive has advantages of overloading protection, empty loading motor starting, energy saving and environment protection.
The automated control system has fault diagnosis and display function for a quick solution to the malfunctions.
Adapted places
High levels sites
Parameters
Mode of drive |
Hydraulic drive |
|
Size of car (L×W×H) |
5000mm×1850mm×1550mm |
|
Weight of car |
2000kg |
|
Lifting motor power |
5.5-11kw |
|
Lifting speed |
12-38m/min |
|
Sliding motor power |
0.2kw |
|
Sliding speed |
8m/min |
|
Electricity |
AC380V,50Hz, 3 phases 5 wires system |
|
Safeguard devices |
Hydraulic whole protection and anti-fall frame |
Anti-fall frame (our patent) |
Warning devices |
Sound, light, electricity |
|
Malfunction indication |
Fault diagnosis by computer, liquid crystal display |
|
Frame composition |
Columns and beams are made of H type steel, Channel steel, angle steel and square pipes; |
|
Parts appearance treatment |
Galvanized treatment and high-grade anti-corrosion paint |
|
Modes of operation |
LCD/ IC card/Manual |
|
Controller |
PLC |
|
Way of parking in and out |
Forwarding, reversing into the space |
|
