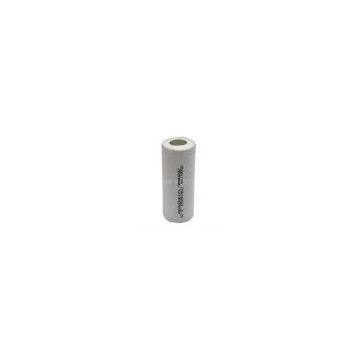

Li-Fe-PO4 26650 Rechargeable:2800mAh 3.2V

Li-Fe-PO4 26650 Rechargeable:2800mAh 3.2V

New Generation Li-Ion Battery (Li-Fe-O or Li-Fe-PSO4): High discharging rate, non explosive, lighter weight and much safe

DATA SHEET20+-5

Relative humidity-------------------- 65+-20%

Applications
RC Car Racing
Airsoft gun
RC robots
E-bike

Detail Data Sheet
Please download the Li-Fe-PO4 26650 Cylindrical Cell 3.2V 2800 mAh specifications

Smart charger You can choose our smart cable and plug it into a smart Li-Ion charger to recharge Li-Fe-PSO4 battery pack. Must use the suitable smart cable with related charger below :

Automatic Smart Charger (0.5A) for 3.0V (1 cell, 3.8V cut-off) LiFePo4 battery Pack
Smart Fast Charger (1A) For any 6.0V (2 cells, 7.6V cut-off) LiFePO4 Battery Pack
Smart Charger (0.5A) for 9.0 V LiFePO4 battery Pack (3 cells, 11.4V cut-off)
Smart Charger (0.5A) for 12.0V LiFePO4 battery Pack (4 cells, 15.2V cut-off) Cautions

Li-Fe-POS4 battery must be cut-off at 3.8V/cell condition when charging
You must limit discharging rate below Max rate

LiFePO4 Series:                       High Energy LiFePO4  Battery
Model	Capacity(mAh)	Diameter(mm)+-0.3	Height (mm)+-0.5	Weight   (g)	Resistance(m??)	Nominal Voltage(V)	Discharge Rate
IFR18650-140	1400	18.2	64.5	40	<80	3.2	4C(with PTC)
IFR26650-280	2800	26	65	76	<40	3.2	10C
IFR16340-040	500	16.2	33.7	17	<150	3.2	4C
PFB422440-20	200	4.2*24*44		8	<350	3.2	1C
