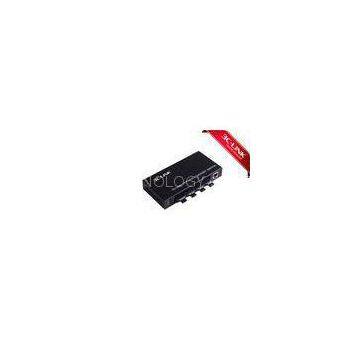

10/100M Mini Type fiber converter ethernet 1 UTP ports , single mode media converter 20Km , SC Duplex
The 3C-DU-400-13-20 converter complies with IEEE 802.3 standards. It is designed to convert data signal between 10/100 Base-TX and 100 Base Fx Fast Ethernet. The media converter is connected between Fiber cable and twisted cable segments with network operating smoothly.
The 3C-DU-400-13-20 support 1 10/100M UTP ports and 4 100Base-FX( Fix SC optical interface).
Provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building - to - building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Connecting the converter to fiber segments can further extend distances between networking nodes. This can beachieved by direct connection between the converter anda fiber-based node or networking device.
Features
Specifications
| Parameter | Specifications | |
| Wavelength | 1310nm for 10Km | |
| Technical | BER: | <1E-8 |
| Data Buffer: | 128Kb | |
| Power temperature variation: | 0．2mw/℃ | |
| Input Power Range (dBm) | 0~-40 | |
| Imax | 800mA | |
| Power | 2.5 W | |
| Fiber cable(m) | 8.3/125, 8.7/125, 9/125 or 10/125single-mode | |
| Maximum distance | 120 km (available ordering options 20/40/60/80/100/120 km) | |
| Input power | IA@+5VDC or 110~260VAC or 48VDC | |
| Environment | Relative humidity | 5% to 90% |
| Operating temperature | 0 to 70 degrees | |
| Storage temperature | -20 to 70 | |
Application
