Specifications
600g non-woven geotextile:road construction geotextile fabric
High quality and inexpensive
600g non-woven geotextile
1.We are one of the largest geo-factory in China.
2.Our manager have 25 years experience in this line .And we have 30 technician to help us to improve products quality . So , our quality is high and our price is low .
3.Our products had passed the CE certificate and our factory had passed the iso9001 ,iso14001 and iso 18000
600G non-woven geotextile
geotextile Geotextile known as weaving geomaterial is a kind of composie geomaterial with good permeability which is acupunctured or knitted using composite fiber. Cloth-like product have the general width of 4-6 meters and a length of 4-6 meters and a length of 50-100 meters. Geotextile can be divided into woven and the non-woven geotextile.

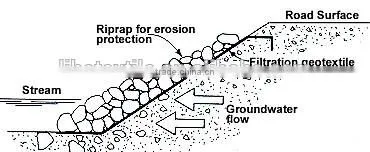

The product has excellent permeability,acquired,durability,which can be widely used in railway,highway,movement hall,DAMS,hydraulic structures,hence hole,coastal shoal,reclamation,environmental protection and other projects.Basically have acupuncture nonwoven geotextile and lectricity crack membrane silk weaving geotextile.
Product Features
It can effectively make the concentrated stress diffuse, transfer or decompound, and prevent the soil mass against the destruction of outside force.
It can prevent the mixture of sandstone, soil mass and concrete of upper and lower layers.
Its mesh is hard to jam by virtue of the compliancy and motility of the reticulation formed by indefinite form fibrous tissue.
High water permeability-it can keep good water permeability even in the pressure of soil and water.
Corrosion resistant-it is made from polypropylene fiber or terylene or other chemical fiber, featuring resistance to acid and alkali and oxidation, non-corroding, no worm-eaten.
Easy construction-low weight, easy operation, simple construction.
Technical data :
NO. |
Item |
Specification |
Note |
||||||||||
100 |
150 |
200 |
250g |
300 |
350g |
400 |
450 |
500 |
600 |
800 |
|||
1 |
Weight Variation% |
-8 |
-8 |
-8 |
-8 |
-7 |
-7 |
-7 |
-7 |
-6 |
-6 |
-6 |
|
2 |
Thickness mm>= |
0.9 |
1.3 |
1.7 |
2.1 |
2.4 |
2.7 |
3.0 |
3.3 |
3.6 |
4.1 |
5.0 |
|
3 |
Width Variation % |
-0.5 |
|||||||||||
4 |
Breaking Strength KN/m >= |
2.5 |
4.5 |
6.5 |
8.0 |
9.5 |
11.0 |
12.5 |
14.0 |
16.0 |
19.0 |
25.0 |
|
5 |
Elongation at Break% |
25~100 |
|||||||||||
6 |
CBR Mullen Burst Strength KN≥ |
0.3 |
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
2.7 |
3.2 |
4.0 |
|
7 |
Sieve Size O90 mm |
0.07~0.2 |
|
||||||||||
8 |
Vertical Permeability Coefficient cm/s |
K× (10-1~10-3) |
k=1.0-9.9 |
||||||||||
9 |
Tear Strength KN>= |
0.08 |
0.12 |
0.16 |
0.20 |
0.24 |
0.28 |
0.33 |
0.38 |
0.42 |
0.46 |
0.6 |
MD and TD |
ShandongLawu Lihe Economic and Trade Co.,Ltd .
Lv Garden,Economic Development Zone,
LaiWu , ShanDong , China
Tel : 86-634-5855293
Mobile : 15166340852
Mrs Sara
