Specifications
Split Yarn (Flat Silk) PP Woven Geotextile:1.Width: 1-6 meters
2.Length: 50-100m
3.Weight: 70-400g/sqm
4.highest quality

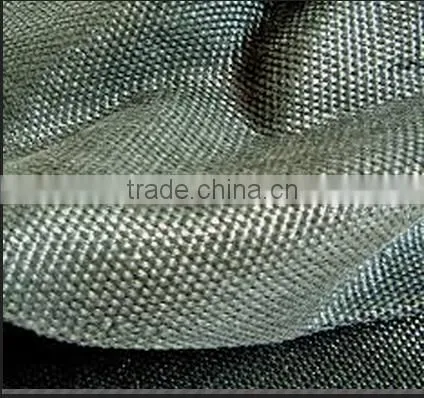

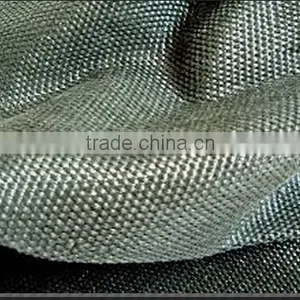

Split Yarn (Flat Silk) PP Woven Geotextile
1) Filtration
The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.
2) Separation:
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.
3 )Reinforcement:
The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.
4 )Protection
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.
Applications
1-Construction of roads and other trafficked areas (excluding railways and asphalt inclusion)
2-Construction of railways,
3-Earthworks, foundations and retaining structures,
4-Use in drainage systems,
5-Erosion control works (coastal protection, bank revetments),
6-Construction of reservoirs and dams,
7-Construction of canals,
8-Construction of tunnels and underground structures,
9-Use in solid waste disposals,
Technical Parameters
Quality per unit area(g/m2) |
120g |
160g |
200g |
240g |
280g |
340g |
400g |
After the breaking strength(KN/m)≥ |
20 |
30 |
40 |
50 |
60 |
80 |
100 |
Zonal breaking strength(KN/m)≥ |
15 |
22 |
28 |
35 |
42 |
56 |
70 |
Latitude and longitude to the elongation at break(%)≤ |
25 |
||||||
Trapezoidal tear strength (longitudinal)(KN)≥ |
0.2 |
0.27 |
0.34 |
0.41 |
0.48 |
0.6 |
0.72 |
Bursting Strength(KN)≥ |
1.6 |
2.4 |
3.2 |
4.0 |
4.8 |
6.0 |
7. |
Vertical permeability coefficient(cs/m) |
10-1~10-4 |
||||||
Equivalent aperture(O95mm) |
0.07-0.5 |
||||||
|
|
|
||||||
