high quality non woven geotextile for separation

Specifications

high quality non woven geotextile for separation
1.permeability,filtration separation and drainage
2.usage:highway,railway,

high quality non woven geotextile for separation

Nonwoven geotextiles have a wide range of applications in civil environmental engineering and construction projects. Lihe brand geotextile offer a wide range of nonwoven geotextiles which provide excellent physical and hydraulic properties and are chemically stable in a wide range of environments. Primarily used for subsurface drainage, soil separation, filtration and rock slope protection. These are cost effective economical solutions for many applications, which will withstand installation stresses with high puncture and burst resistance. The high permeability properties provide high water flow rates for excellent filtration properties.

Packaging:

APPLICATION:

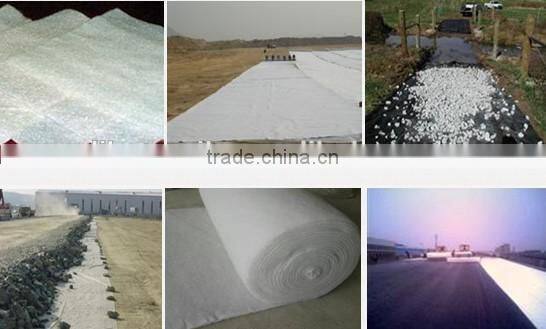

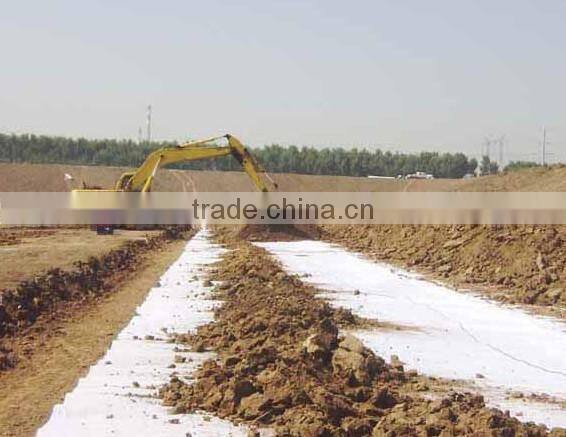

Mainly applied in water conservancy,road and railway for strengthening,separation,reversed filter and drainage of projects.



PROPERTIES:



g/m²	100	150	200	250	300	350	400	450	500	600	800	Note
Mass error in unit area	-8	-8	-8	-8	-7	-7	-7	-7	-6	-6	-6
Thickness≥(mm)	0.9	1.3	1.7	2.1	2.4	2.7	3.0	3.3	3.6	4.1	5.0
Error of width(%)	-0.5
Breaking strength≥(KN/m)	2.5	4.5	6.5	8.0	9.5	11.0	12.5	14.0	16.0	19.0	25.0	MD/CD
Elongation at break(%)	25-100
CBR puncture resistance≥(KN)	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.2	4.0
Equivalent Pore Size 090(095)mm	0.07-0.2
Vertical permeability coefficient	Kx(10-4-10-3)											K=1.0-9.9
Tearing strength≥(KN)	0.08	0.12	0.16	0.20	0.24	0.28	0.33	0.38	0.42	0.46	0.60	MD/CD

Packaging&shipping

in woven bags or in polybags
