1.Product type:
PT131-2 melt pressure transmitter
Feature and usage:
PT131-2 melt pressure temperature transmitter’s feature and application:rigidity pole, hose isolation, diaphragm construction,good stability and accuracy;implicated in,polyester, rubber modeling and other machines. It’s used in measuring and controlling the melt flow medium.
Main technical parameter:
range:0~5~200MPa ,complex accuracy:0.5%FS ;1%FS output signal:1.5mV/V ;2mV/V;3.33mV/V voltage supply:10VDC temperature model,K,E, PT100 temperature of diaphragm:450℃ electric connection:five core inserter and 5 pin with 2 core temperature inserter. screw thread:M14×1.5 ;M18×1.5 ; M22×1.5;special design.
Technical parameter:

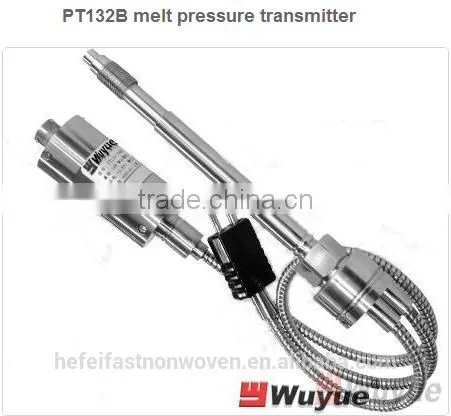

Mainly used in plastic modeling, fiber, petrifaction and other special condition’s pressure measurement. Coordinating to our PW series smart digital pressure meter, it can simultaneously measure and control, transmitter series adopt 24V current electric. Standard output signal in order to let computer collect. The series is my company which only usesUnited Statestechnology in diaphragm and thread the attachment of various fluoride diaphragm of special coatings and coating for high temperature melt sensor transmitters. So it has a longer working time. 2.Product type: PT132B melt pressure transmitter
Feature : PT132B series high accuracy pressure transmitters apply to measurements which requires accurate datas.this product adopted special materials and allayed elasticity diaphragm to lower the combined error. The performance indicators reach world class level. Ideal substitute of expensive other world class like product.
High accuracy, sealed with stainless steel, easy installment, good stability. Calibration on both zero and full scale, amplified signal can be directly input in PLC. Products are applied to measure and control the pressure as well as temperature of those high temperature fluid medium of extruders for such as fiber, polyester, rubber, plastics.Anticorrosion and wear resistance coating extends its service life by more than 5 times
Main technical parameter:
Pressure ranges: any scale from 0-7MPa-100MPa
Accuracy:< ±0.5% FS; < ±1.0% FS
Signal output:4--20mV/V,0--5--10V
Working voltage:10VDC(6--12VDC)
Calibration:80%FSO+1% high temperature melt pressure transmitter
Maximum temperature resistance of diaphragm:350°C
Electrical Connector: common 5pin connector
Standard threading: 1/2-20UNF, M14x1.5, M22*1.5:M18*1.5 ;other versions on request
Melt pressure transmitter got CE Approved 3.Product type: PT111B melt pressure transmitter
Feature : PT111B series high accuracy pressure transmitters apply to measurements which requires accurate datas.this product adopted special materials and allayed elasticity diaphragm to lower the combined error. The performance indicators reach world class level. Ideal substitute of expensive other world class like product. High accuracy, sealed with stainless steel, easy installment, good stability. Calibration on both zero and full scale, amplified signal can be directly input in PLC. Products are applied to measure and control the pressure as well as temperature of those high temperature fluid medium of extruders for such as fiber, polyester, rubber, plastics.Anticorrosion and wear resistance coating extends its service life by more than 5 times
Main technical parameter:
Pressure ranges: any scale from 0-7MPa-100MPa
Accuracy:< ±0.5% FS; < ±1.0% FS
Signal output:4--20mV/V,0--5--10V
Working voltage:10VDC(6--12VDC)
Calibration:80%FSO+1% high temperature melt pressure transducer
Maximum temperature resistance of diaphragm:350°C
Electrical Connector: common 5pin connector
Standard threading: 1/2-20UNF, M14x1.5, M22*1.5:M18*1.5 ;other versions on request
Melt pressure transmitter got CE Approved
4.Product type: PT4624 high temperature melt pressure transmitter
Feature :
PT4624 series high temperature melt pressure transmitters are amplified output melt pressure transmitters with flexible stem . All models interface directly with distributed control systems, PLCs, computers and similar high level control devices.the PT4624 Series transmitter is a +/- 0.5% sensor ideal for general melt pressure measurements requiring simple installation, repeatability and reliability.
Reliable pressure measurement ,Anticorrosion and wear resistance coating extends its service life by more than 5 times
Main technical parameter:
Pressure ranges: any scale from 0-200MPa
Accuracy:< ±0.5% FS
Signal output:• 4 to 20 mA, 0 to 5 Vdc, 1 to 6 Vdc,0 to10 Vdc, 1 to 11 Vdc
Working voltage:14 to 36VDC
Calibration:80%FSO+1% high temperature melt pressure transmitter
Maximum temperature resistance of diaphragm:400°C
Electrical Connector: special 6pin or 7pin connector
Standard threading: 1/2-20UNF, M14x1.5, M22*1.5,M18*1.5 ;other versions on request
Melt pressure transmitter got CE Approved
5.Product type: PT1366B high temperature melt pressure transmitter
Feature :
PT1366B series high temperature melt pressure transmitters are our patented product with new characteristic, such as: rigid rod, metal hose for isolation, diaphragm spacer assembly, super stability and accuracy. Products are applied to measure and control the pressure as well as temperature of those high temperature fluid medium of extruders for such as fiber, polyester, rubber, plastics.
Anticorrosion and wear resistance coating extends its service life by more than 5 times
Main technical parameter:
Pressure ranges: any scale from 0-200MPa
Accuracy:< ±0.5% FS; < ±1.0% FS
Signal output:4--20mV/V,0--5--10V
Working voltage:24VDC
Calibration:80%FSO+1%
Maximum temperature resistance of diaphragm:350°C
Electrical Connector: special 7pin connector
Standard threading: 1/2-20UNF, M14x1.5, M22*1.5,M18*1.5 ;other versions on request
Melt pressure transmitter got CE Approved
6.Product type: PT2618B high temperature melt pressure transmitter
Feature :
PT2618B series high accuracy pressure transmitters apply to measurements which requires accurate datas.this product adopted special materials and allayed elasticity diaphragm to lower the combined error. The performance indicators reach world class level. Ideal substitute of expensive other world class like product.
High accuracy, Sealed with stainless steel, Rigid rod, Good stability. Calibration on both zero and span, Amplified signal can be directly input in PLC.High performance of anti-interference.
Main technical parameter:
Pressure ranges:0-5 to 0-200MPa
Accuracy: < ±0.5% FS
Signal output:0~5V; 0~10V; 4-20mA
Working voltage:24VDC (12~36)VDC
Electrical Connector: common 6pin connector
Process connection: flange, other type on request
Temperature resistance of diaphragm:400°C
Overload pressure:1.5*FS high temperature melt pressure transmitter
Melt pressure transmitter got CE Approved
