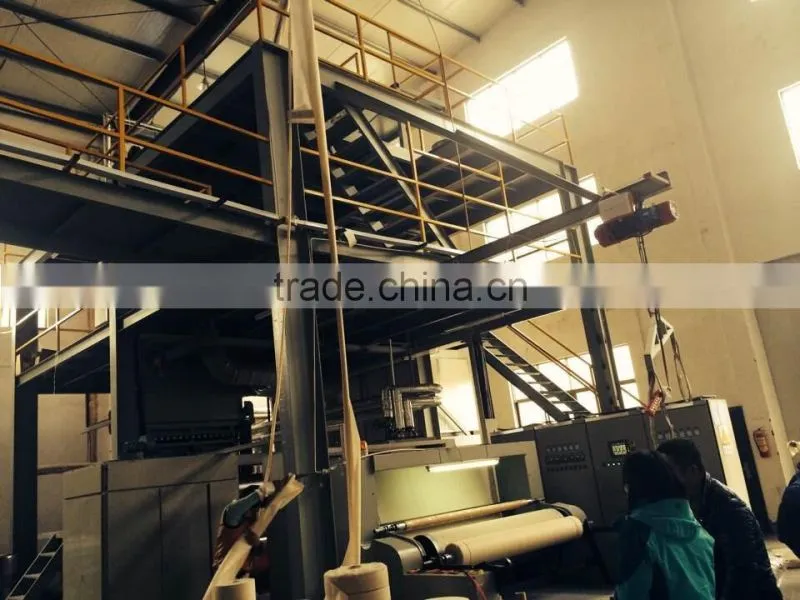

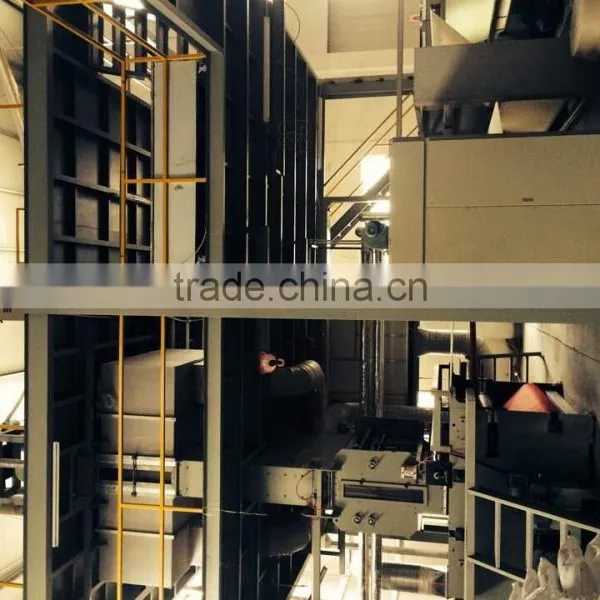

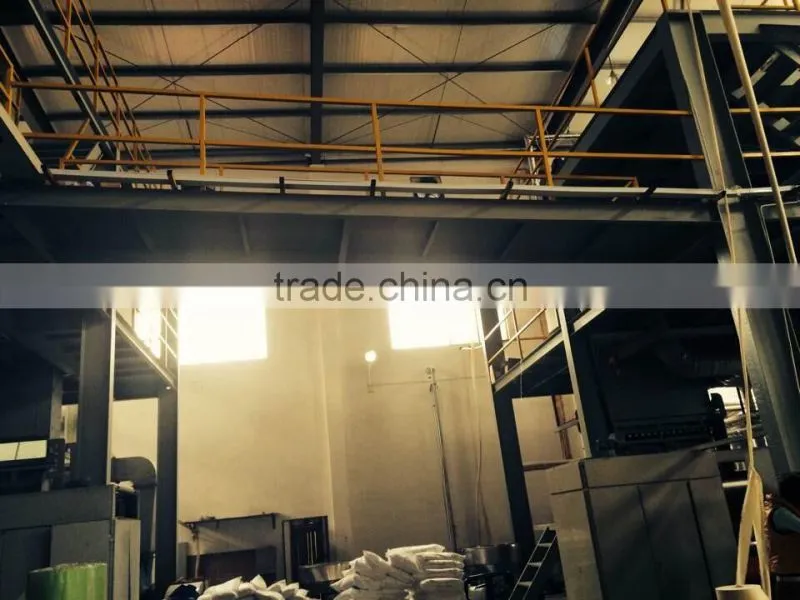

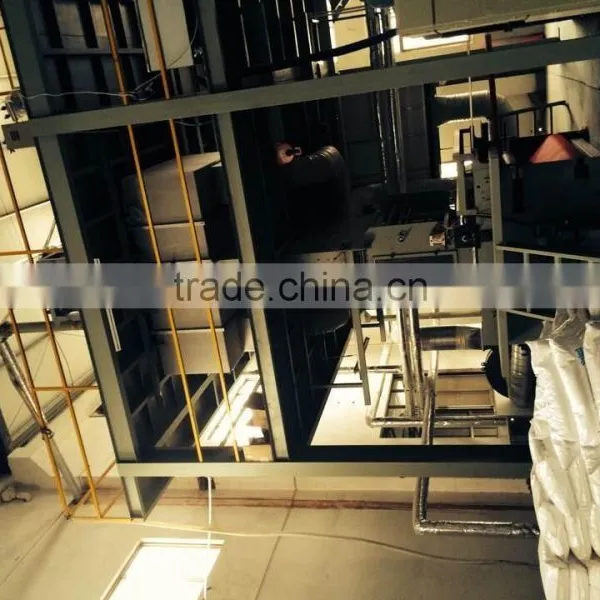

1.6M PP Spunlace Nonwoven Machine
1.High quality and competitive price
2.Hot in India,thailand,russian
3.Width:1.6m. 2.4m. 3.2m
1.0 Business Terms
1.1 Equipment Quotation
Name :PP one beam production line of 1600mm width
Equipments listed in the Clause 2.5:
Explanation: This quotation includes:
1.1.1, Main equipments of the Production Line
1.1.2, Auxiliary equipments of the Production Line
1.1.3, Spare Parts of the Seller’s Supply Scope
1.1.4, Technology documents and construtiondrawings of the Seller’s Supply Scope
1.1.5,Electric wires and cables between cabinets and machines.
The following are not included:
1.1.5, The construction design, construction, public engineering
configuration and establishment, electric sending system of high and low voltage which are duo to the Buyer.
1.1.6, Trial run and production material
1.1.7, Consuming material of the production
1.1.8, Tools and lifting equipments necessary for the installments and production
1.1.9, Public engineering materials such as the tubes of air, water, air and electric, heat preservation material. Cables and wires between machine cabinets and low voltage distribution cabinets.
1.1.10, The Seller’s technical persons’ meals, local transport, hotel fee, and air tickets from China to Cameroon around.
1.2Payment Terms
1.2.1. 30% by T/T within 7 days after the signature of the contract
1.2.2 70% by irrevocable confirmed L/C within 7 days after signing the contract.
1.2.3 The contract will become valid after the Seller receives the first T/T and L/C.
1.3 Delivery
It is about 7 months after the validity of this contract. If any delay for the T/T and L/C, the Seller will delay to deliver the same days correspondingly.
1.4 Validity
1 month
2.0 Technology Terms
2.1 Raw Material
2.1.1, PP chips
2.1.2, MFI(230℃) 30-40g/10min ±1 for one block:30-40g/10min ,±1.
2.1.3, Melt point:166 ℃
Ash<0.15-0.25%
2.2 Technology Data
2.2.1, Product Width: 1600mm
2.2.2, Die :1
2.2.3, Filament Denier : 1.8-2.6 den
2.2.4, Weight Range : 10-150g/ m2
2.3 Production Capacity :
1500ton/year
2.4 Production Process Flow:
main and auxiliary components chips——metering and mixing units——melting and extruded——filtrated——melt metering(1 spin pump)——spinning——cooling——air stretching——forming web——thermobonding——winding——slitting
2.5 Supply scope
2.5.1 Metering, mixing and feeding device----------------------------------------1Sets
Consisting:Feeding device: 1 set Hopper: 1 set
2.5.2 Melt spinning system----------------------------------------------------------1 Sets
Consisting:
Extruder---------------------------------------------------------------------------1 Sets
L/D: 30
Diameter: 130mm
Capacity:250kg/h
Extruder speed:20-60rpm
Screen Changer------------------------------------------------------------------1 Sets
Filter web could be changed in line.
Melt tubes------------------------------------------------------------------------1 Sets
Spin Pump-----------------------------------------------------------------------1 Units
Capacity: 150cc/r
Made by HUAXI (China)
Spinning Die---------------------------------------------------------------------1Sets
Heating by electricity
Die Pack--------------------------------------------------------------------------1Sets
Braker plate and spinneret are included.
Specification of spinneret: 1910*216
Diameter of hole: 0.4-0.45mm
L/D: 4
Shape of section: rectangle
2.5.3 Quenching and Stretching System-----------------------------------------1 Sets
Consisting of ::
Quench Chamber with relative moving device
Stretching channel
Diffuser with moving device
2.5.4 Screen Belt Conveyor-----------------------------------------------------------1 Set
Parameters:
The speed : 150m/min
Consisting of:
-Screen belt driving device
-Suction device under the web
-Rubber rollers
-Automatic aligner device
-Belt tension device
-Screen belt (Made in China)
2.5.5 Calender----------------------------------------------------------------------------1 Set
The Main Parameters:
-The working width: 1800mm
-The machine speed: 150m/min
-The nip pressure of the rollers is adjustable.
-Oil heating for the rollers:
2.5.6 Winder----------------------------------------------------------------------------1 Set
Max. diameter of finished products:1000mm
With the function of loading and changing rolls in line.
3 pieces of winding rollers
2.5.7 Slitter--------------------------------------------------------------------------- 1 Set
Gross width: 1800mm
Max. speed: 250m/min
Min. slitting width: 100mm
Max. finished diameter: 1000mm
2.5.8 Vacuum oven-----------------------------------------------------------------1 Set
2.5.9Ultrasonic Cleaning Device--------------------------------------------------1 Set
2.5.10Process cooling air and cooling water system-----------------------------1 Set
Consisting of :
Cooling water system---------------------------------------------------------1 Set
Cooling air system---------------------------------------------------------1 Set
-Sending air unit
-Cooling unit
-Suction air unit
2.5.11 Air compressor-------------------------------------------------------------1Set
Working pressure: 0.6-1MPa
2.5.12 Electric Controlling System----------------------------------------------1 Set
Inverter, PLC use SIEMENS products
Controlled by industrial computer
2.5.13Auxiliary equipments-----------------------------------------------------1 Set
Steel platform of main equipments
Operation desk beside the screen belt conveyer
2.5.14Spare parts------------------------------------------------------------------1 Set
2.5.15Documents-------------------------------------------------------------------1 Sets
