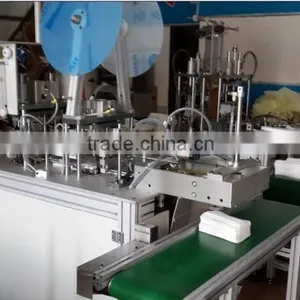

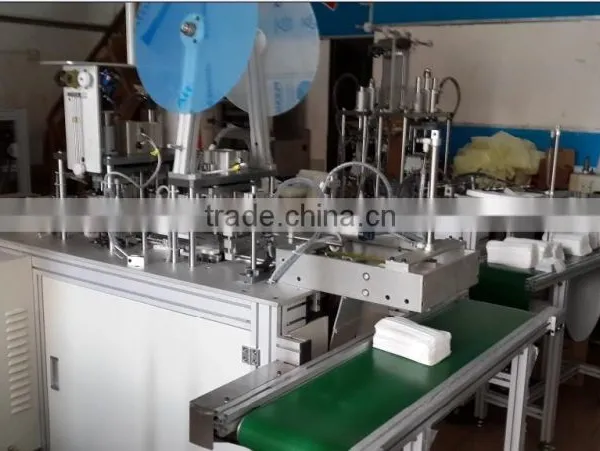

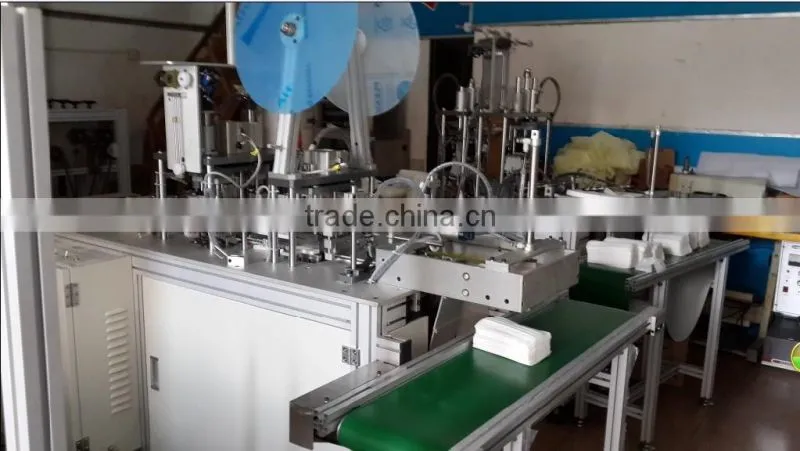

Inner ear loop welding machine
Operational Principle:
Inner Ear-loop Mask Machine uses ultrasonic technology to weld the elastic band to the two sides of Face Mask Blank, then finishes the whole procedure of making a complete inner ear-loop face mask.Our earloop welding machine only needs one operator to put the face mask blank onto the conveyor belt, then it will finish all the remaining processing automatically.
Technical Data:
Dimension: 1915(L) X 855(W) x 1780(H)mm
Voltage: 220V, 1 or 3 phase
Productivity: 40-50pcs/min
Power consumption: 6KW
Air Pressure: 6kg/cm2
Frequency: 20KHZ
Features and Functions:
1.Compact Machine Design,so they will save space ;
2.All the structure of the whole face mask machine was made from aluminum alloy, beautiful, strong and rustproof;
3.With high stability, low failure rate;
4.PLC Procedure Control;
5.Photoelectric detection which can lower the failure rate.
Machine Workflow:
1.Put the face mask blank
2.Weld the face mask ear band
3.Cover the face mask edge
4.Weld the face mask edge
5.Cut the face mask edge band
6.Finish the face mask
