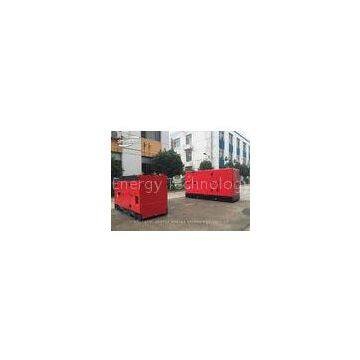

Industrial Perkins Diesel Generator Set 1500 rpm 8 KW 10 KVA

Delivery Time:20 working days after received your payment
Certification:ISO9001/OEM/CE/CO

Industrial Perkins Diesel Generator Set 1500 rpm 8 KW 10 KVA

Description:

1. Generator: Stamford Copy Stamford

2. Support customized service and OKD .

3. Fuel tank can be increased to 48 hours.

4. 1 control module DeepSea,Comap,Smartgen

Applications:


1. Industrial Area:Hospitals,Hotels,banks, Factories, oil field, airport, mining, railway
2. Household: Personal family use, family feast,camping, party, etc
3. Telecom: Mobile tower, etc
4. Extraordinary Circumstances: Island, Desert or any circumstance places without electricity
5. Any disaster environment:the best emergency equipment special for natural disasters,

    as typhoon, earthquake,heavy snow,rescue etc.

Detailed Description:

1. Specification of genset
Gensets model				P10S
Prime power (KW/KVA)				8/10
Stand power (KW/KVA)				9/11
Fuel Tank Capacity (L)				60
Dimensions L*W*H				1550*700*900
Weight(KG)				600
Rated Voltage				380/220V
Rated frequency(HZ)				50
Rated Speed				1500rpm
Power Factor(COS￠)				0.8(lagging)
2. Specification of diesel engine
Engine brand				Perkins
Engine model				403D-11G
Number of Cylinders				3
Cylinder arrangement				Vertical in-line
Cycle				Four stroke
Aspiration				Turbocharged, air-air after-cooled
Bore×Stroke (mm×mm)				77mm /81mm
Displacement (Liters)				1.1
Compression Ratio				23.5:1
Speed Governor				Electronic
Cooling System				Forced Water Cooling Cycle
Total lubrication system Min.capacity (L)				4.9
Fuel Consumption at 100% Load (L/h)				2.5
Starting Method				DC24V electrical starting
3. Specification of alternator
Alternator brand				Leroy-Somer
Alternator model				LSA 40VS1
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP23
Altitude				≤1000m
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H
Telephone Influence Factor (TIF)				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%～+20%

Engine Main features:

1. Water-cooled, in-line diesel engine
2. Efficient fuel system for max power output and durability
3. Large-capacity air cleaner
4. Cost effective, fuel efficient and reliable performance
5. Functional engine with compact structure
6. Excellent after-sales service and sufficient spare parts supplying
7. Easy installation and ready access for routine maintenance



Design Characteristic

Engine design Characteristic:

1. Belt dri
