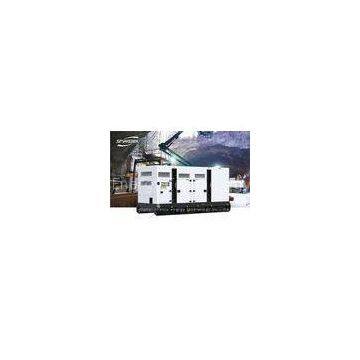

Overall Industrial Generating Set Solution Diesel Driven with Cummins Engine 50HZ 380V/400V 480kw 60

Overall Industrial Generating Set Solution Diesel Driven with Cummins Engine 50HZ 380V/400V 480kw 600kva C600S

Product Feature

1. Four valves per cylinder and optimized design of air port swirl ratio and combustion chambers

   provide higher air intake efficiency, P7100 injection pump and vertically and centrally-mounted

   injectors, as well  as the aplication of new fuel mixing and atomization technology result

  in decrease of fuel consumption by 8%-10%

2.  It is safe and reliable with its service life(B10) over 10, 000 working hours

I. Applications:

1. Buildings

2. Hospitals

3. Railway Stations

4. Banks

5. Data center

6. Telecom

7. Mining

8. Military

9. Special environment: islands,mines,oil fields,deserts etc

Detailed Specifications:

Genset Technical Datasheet

Engine Technical Datasheet

Test Condition:

Engine design Characteristic:

1. Belt drive system:

    Belt drive system with tensioner offering automatic belt tension.

2. Maintenance:

    Wet liner capable for quick exchanging,cylinder

    head valve guide tube can be repaired by resisting.

3. Connecting rod:

    Alloy steel with high strength and flat cutting.

4. Crankshaft:

    Alloy steel with whole bearing supporting and bearing and round corner harden.

5. Cylinder block:

    Alloy casting with wet liner.

6. Holset turbocharger:

    H series bypass high efficient turbocharger.

7. Piston:

    Silicon- aluminum alloy piston with dual Ni-resist and oil cooling.

8. Starting function:

     Be started at-12℃ without assistant installation; Be started at -35℃

     with assistant installation.

9.  Fuel consumption:

     Excellent fuel consumption with B.S.F.C 210g/kW.h.

10. Construction characteristic:

     Simple and compact construction, fewer components and light weight.

Attachment(Power Pickup)equipment:

Attachment equipment can be offered according to customer’s requirements.

For sufficiently unleashing engine performance, whole
