II SERIES LED OPERATING LAMP II SERIES LED
II SERIES LED OPERATING LAMP FEATURE
1. Germany imported Osram LED medical light source is adopted
II LED Touch pad control system is developed for adjustment control of power switch, brightness switch, illumination level, color temperature, sopt size,color rendering index, to meet medical personnel requirement of variant operation.
2.Cold infrared-free light
In comparison to conventional halogen and gas discharge lamps, the "cold" II LED light allowing for fatigue-free operating and prevents tissue from drying out in the operation field at the head area of the surgeon.
3.Shadow-free Illumination
The relation between light body and light field diameter guarantees an optimum illumination of the OT field in terms of area and depth.
4.High Luminance with optimum color rendering
Designed to provide a light output with a color rendering index and color temperature which is very close to natural daylight.This helps the surgeon to distinguish between pathological and healthy tissue.
5.Optimum design for clean air ceilings (Laminar Air Flow)
The perfect design reduce the airflow surface beneath the ventilated ceiling, Flow- optimized light head and reduced surface temperature minimise turbulence in laminar air flow.
6. Optimum design for clean air ceilings
Flow- optimized light head and reduced surface temperature minimize turbulence in laminar air flow.
7. Long-lasting light sources, environmentally friendly
With a life cycle of at least 50,000 operational hours, an LED provides illumination many times longer than conventional lighting.In addition,each LED can be replaced individually and on site.
8.The Germany ondal and Chinese arm system option
As a flexible lighting solution, II LED light can be individually combined with different support arm solutions,enabling it to be used as needed in different operating theatres.
II SERIES LED OPERATING LIGHT CONFIGURATIONS

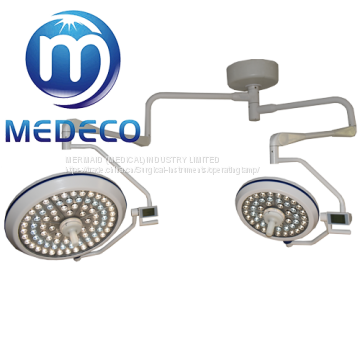

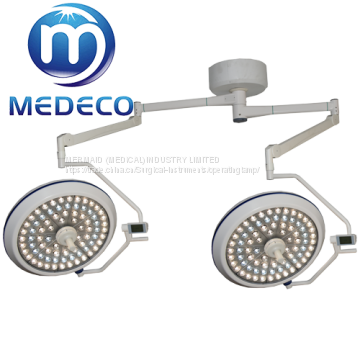

LED 700/700(700mm+700mm Lamp Head)
LED700/500(700mm+550mm Lamp Head)
LED 500/500(700mm+550mm Lamp Head)

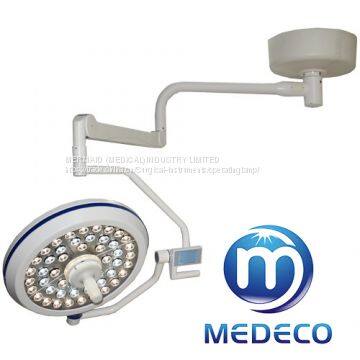

LED 700 (700mm Lamp Head)
LED 500 (550mm Lamp Head)
| II SERIES LED OPERATING LAMP (II SERIES 700/500) | ||
| Technical specifications for lights | II LED700 | II LED500 |
| Central illuminance at 1m working distance | 40,000~18,0000 lux | 40,000~160,000 lux |
| Focusable light-field size at 1 m distance | 120~300mm | 120~300mm |
| Colour temperature | 3500~5000K | 3500~5000K |
| Depth of Focus | >700mm | >700mm |
| Colour Index Ra | 95 | 95 |
| Power Supply | 110~240V 50/60Hz | 110~240V 50/60Hz |
| Effective bulb service life | >50,000h | >50,000h |
| Diameter of lamp housing | 700mm | 500mm |
| Power consumption of light heads(W) | 60 | 48 |
| Installation height (Ceiling type) | 280-320 cm | 280-320 cm |
