High Frequency Three Phase Industrial Inverter 400Hz Goodrive35 series For CNC Gun Drill
Description

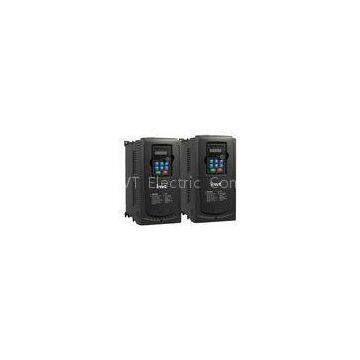

Goodrive35 industrial inverter special spindle-positioning frequency inverter developed from the Gooddrive300, part of the new generation, is a more accurate and powerful closed-loop vector frequency inverter.
Specifications
Selection Guide
|
Model |
Output Power(kW) |
Input Current(A) |
Output Current(A) |
Carrier Frequency(kHz) |
|
GD35-1R5G-4 |
1.5 |
5.0 |
3.7 |
2~15(8) |
|
GD35-2R2G-4 |
2.2 |
5.8 |
5.0 |
2~15(8) |
|
GD35-004G-4 |
4 |
13.5 |
9.5 |
2~15(8) |
|
GD35-5R5G-4 |
5.5 |
19.5 |
14 |
2~15(8) |
|
GD35-7R5G-4 |
7.5 |
25 |
18.5 |
2~15(8) |
|
GD35-011G-4 |
11 |
32 |
25 |
2~15(8) |
|
GD35-015G-4 |
15 |
40 |
32 |
2~8(4) |
|
Big Power Section |
18.5~75 |
Determined by rated power |
Determined by |
2~8(4) |
Features:
1. Closed-loop Vector Control
More precise and powerful motor torque, speed and position control capacities
(1) Position control performance-Applicable for machinery positioning applications
(2) Torque and speed control performance ensure the motor operates stably and responds rapidly with small torque pulse
(3) Excellent weak magnetic control capacity to meet the requirements on rapid acceleration and deceleration
2. TÜV SÜD Product Certification
3. Special function for machine tool
4. System Supporting Wiring Plan
5. Complete-driver all-round
(1) It can drive a variety of motors: high-speed motor, electric spindle, variable frequency motor, AC servo motor, various synchronous motors and ordinary asynchronous motors
(2) Perfect motor parameter auto-turning function, which can achieve self-study of rotational and static motor parameters
6. User-friendly Interface
Applications
Application of INVTGoodrive35 Frequency Inverter to CNC Gun Drill
