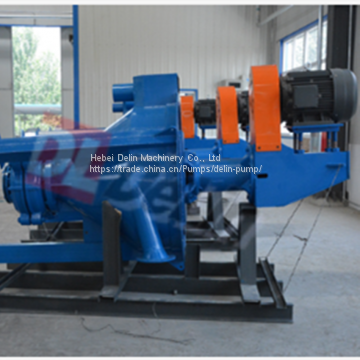

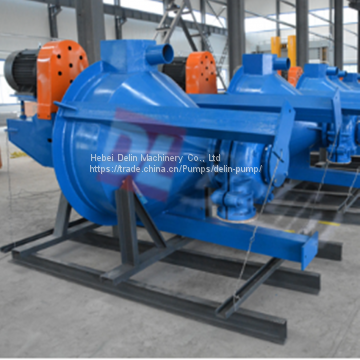

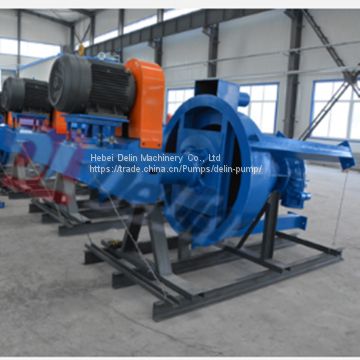

Vertical Shaft Slurry Froth Pump

Name: Vertical Shaft Slurry Froth Pump
Brand: Delin
Availability: InStock

FOB Price

US$ 8162 - 8163 / Set

1 Set(Min. Order)

Port Tianjin
Payment TermsT/T L/C Other
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Delin	Place of Origin	China
Model Number	100DF	Application	Sewage
Fuel	Other, Electric/Diesel	Power	Other, Electric/Diesel
Usage	Water	Theory	Centrifugal Pump
Standard or Nonstandard	Standard	Structure	Single-stage Pump
Pressure	Low Pressure

Product Description

Overview

Quick Details

Place of Origin:
Hebei, China (Mainland)

Brand Name:
Delin

Model Number:
100DF

Theory:
Centrifugal Pump

Structure:
Single-stage Pump

Usage:
froth pump

Power:
Electric

Standard or Nonstandard:
Standard

Fuel:
Electricity/Diesel

Pressure:
Low Pressure

Application:
Sewage

Material:
High chromium white iron

Speed:
1000r/min

Capacity:
64 l/s

Head:
25m

Kind of drive:
BD

Attachment code:
9603910010

Packaging Details
Plywood case or container

Delivery Time
25 days after the payment

Product Description

Vertical shaft slurry froth pump

HEBEI DELIN MACHINERY CO.,LTD is one of the biggest pump companies specialised in manufacturing slurry pumps in China, with land area of more than 40,000㎡ and over 22,000㎡ in building. Delin slurry pumps are mainly used for river course, mining, metallurgy, city planning, power, coal, FGD, petroleum, chemical, building material, etc.

Description of the pump
DF series froth slurry pump is vertical,single casing,single stage centrifugal pump,manufactured by our company under the advanced technology introduced from abroad. This series pump can effectively eliminate the bubble in the slurry at work,even the slurry capacity is not enough the pump can work normally .It is suitable for various of flotation process and a perfect pump for handing frothy pulp indeed. Its handing capacity is much higher than that of other types slurry pump without shaft seal and sealing water.

Features:
Excellent performance, easy assembly & disassembly,high reliability and etc.
Without shaft seal and sealing water.
The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.
Drive type: It can be used in direct drive or indirect drive, and the belt pulley can be replaced easily,used to change the pump speed and meet the variations of working conditions.
The transmission parts are in commonly used with famous vertical sump pump.

Pump Specification
Discharge Diameter: 2~8 inch (7.2~200mm)
Flow capacity: 5~648m3/h
Head:4~30m
Materials:
Wet-parts can be Ni-hard, high chrome alloy iron and pressure-molded natural or synthetic rubber. The hopper-tank is fabricated with steel plate.Its inner wall of the tank can be covered with liner according to different transfer medium.

Product Name	Vertical shaft slurry froth pump
Material	High chromium white iron
Color	Customise
Standard	GB
Grade	A05, A07, A09, A12, A33, A49, A61, R08, R55
Service	Free spare trial
Type	3QV 4F
Used	Mining industry
