Circular Locus Pilling Tester
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
QINSUN
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, China
Delivery Detail:
30 days
Related Products
Brand Name
QINSUN
Place of Origin
China

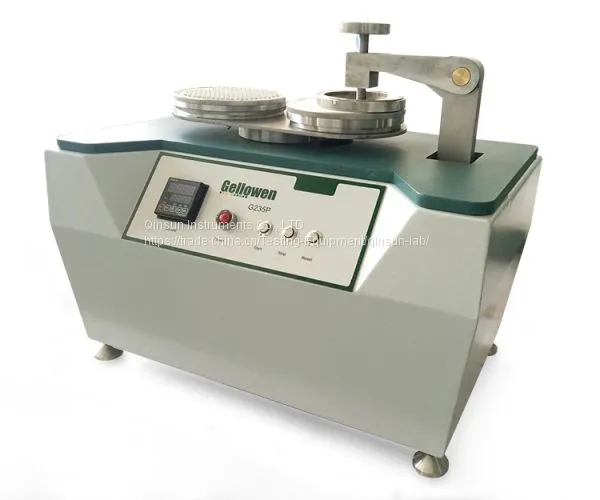

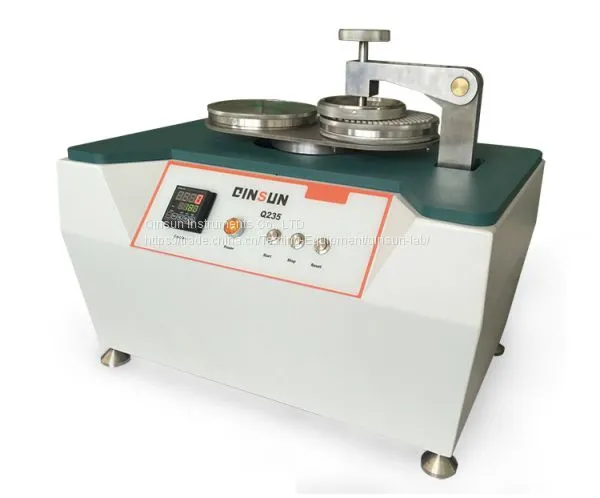

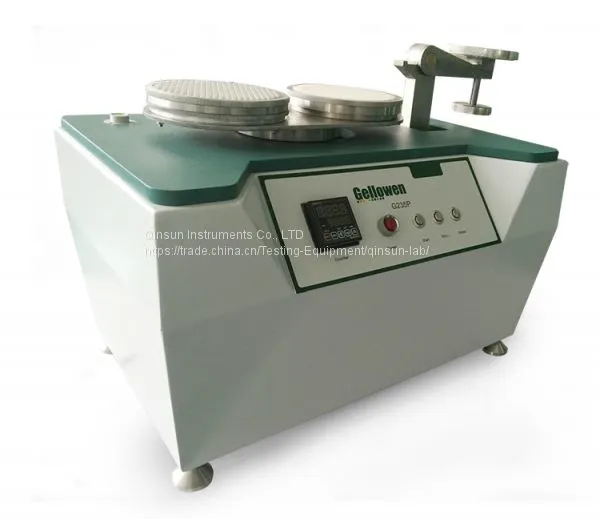

Circular Locus Pilling Tester
Testing Standards:
GB/T 4802.1, JIG 040-1990
Product Information:
The Circular Locus Pilling Tester is used for determining the pilling and fuzzing of all kinds of fabrics to evaluable the product quality and process, such as wool, chemical fiber, mixed, kitted and woven fabrics. During the test, fabric is rubbed against a nylon brush and abrasive, or only against an abrasive under controlled conditions.
Technical Parameters:
1.Contact gap between abrasive assembly and abrasive platform: ≤0.2mm;
2.Parallelism of grinding head and grind plane: ≤0.3mm;
3.Moving locus:￠40mm circle track moving;
4.Nylon brush with paralleled surface, the altitude difference: ＜0.5mm;
5.Reciprocating speed of abrasive platform: 60±1r/min;
6.Weight of grinding head: 490cN±1%;
7.Weight of larger loading weight/pieces: 290cN±1%;
8.Weight of little loading weight/pieces: 100cN±1%;
9.Times of options: 1～9999;
10.Meet the requirements of standard tests.
| SAMPLE TYPES | Pressure/cN | Fuzzing No. | Pilling No. |
| Chemical fiber knitted fabric | 590 | 150 | 150 |
| Chemical fiber woven fabric | 590 | 50 | 50 |
| Military uniform (combing blended) | 490 | 30 | 50 |
| Combed wool fabric | 780 | 0 | 600 |
| Carded wool fabric | 490 | 0 | 50 |
