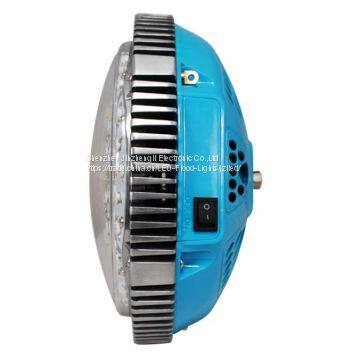

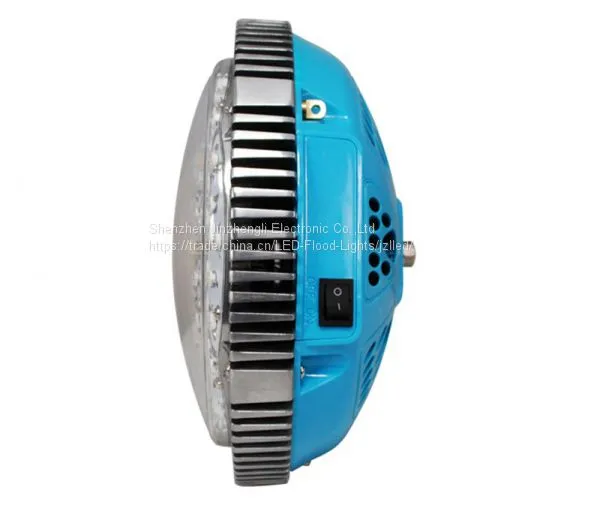

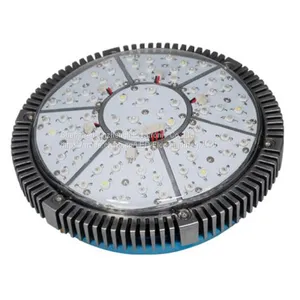

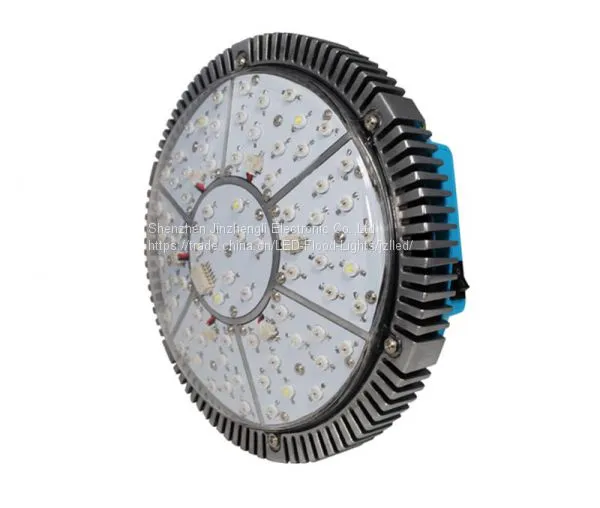

UFO 140W LED Grow Light
LED Grow Light
Procduct Details
Unique innovative ideas:
1.Wide range voltage input 100-240V AC
2.Double cages structural heat dissipation design,better cooling performance
3.Prevent drippage water design
4.High quality 3W LED+700mAcurrent=The top performance
5.Modularity design, Customizable spectrum
6.Superior seismic performance: when bare light without any protection, a 0.4M-height fallen to the ground would not cause any damage.
Application：
Ideal for all phases of plant growth, and works well with water solution culture and soil culture. Can be used in house garden, pot culture, garden, sowing, breeding, farm, flower exhibition, bonsai, garden, green house, sowing, breeding, farm, greenhouse cultivation, water soluble breeding, greenhouse cultivation, pipeline cultivation and so on.
Specification:
Name |
140W LED Grow Light |
Actual power |
135~150W |
Model |
JZL-G-UFO140W |
LED Qty |
75pcs*3W |
Input voltage |
AC100~240V |
LED color |
Red(630nm)/Blue(460nm) |
Output voltage |
DC55~70V |
Lifespan |
50,000 Hours |
Input current |
670~700mA |
Working frequency |
50~60Hz |
PF |
0.9 |
Working environment |
-20~40℃，45%~95%RH |
Product size |
Ф260*136mm |
N.W. |
3.05kg |
Inner carton size |
290*290*180mm |
G.W.(Inner carton ) |
3.5kg |
Outer carton size |
590*300*370mm/4pcs |
G.W.(Outer carton ) |
14.85kg |
Standard configuration |
LED Light x1,Power line x1,Chaining x2 |
||
Remarks |
The above parameter is based on Red:Blue=8:1, for reference only |
||
Illumination and PAR value data sheet | |||||||
Height(cm) |
20 |
40 |
60 |
80 |
100 |
150 |
200 |
PAR (umol m-2s-l) |
1167 |
310 |
140 |
73 |
46 |
19 |
10 |
Illumination(lux) |
30800 |
8970 |
4100 |
2160 |
1424 |
608 |
346 |
Irradiation Area(㎡) |
26.79 |
31.17 |
32.97 |
35.89 |
38.92 |
43.47 |
46.08 |
(Remarks: the irradiation area is base on PAR value＞10 )
