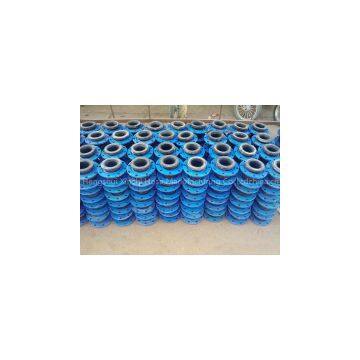

Help CenterRubber Expansion Joint/rubber Flexible Connector/compensator
Related Products
-
Factory of Hydraulic High Pressure Steel Wire Braided Rubber HoseUS$ 0.98 - 0.98MOQ: 1000 Pieces -
Hydraulic High Pressure Rubber Hose Crimping/crimper Making MachineUS$ 2200 - 2200MOQ: 1 Set
-
Hydraulic Rubber Hose Pipe Cutting Machine/cutterUS$ 650 - 650MOQ: 1 Set
-
Hydraulic Hose Skiving MachineUS$ 650 - 650MOQ: 1 Set
-
Fiber Wire Braided Compress Air Rubber HoseUS$ 0.7 - 0.7MOQ: 1000 Pieces
Construction & Material
Rubber compensator
Tube: NR/Special Synthetic Rubber
Reinforcement: Fabric
Frame: Steel Wire
Cover: NR/Special Synthetic Rubber
End Fitting: Stainless or Carbon Steel floating Flange
1. Certificate: ISO9001: 2000
2. Single or twin sphere
3. Size: DN25~1400
4. Working Pressure: 16 Mpa
Features
Rubber compensator
1. The joint could primarily reduce the quiver and the noise ofthe piping system; Completely solve the different piping problems asdisplacement of jiont, axial flex and etc.
2. Accordingto different material requirement, product could be made as acid proof, alkali proof, corrosion proof to suit different medium and environment.
3. Thematerial are good sealing, light weighting, easy to fix and maintain, also has long usage life. But please keep far away from sharp metal inorder to avoid breaking of the ball.
Specification
Rubber compensator
Flange Drilling: According requirement.
Rubber: EPDM Rubber
Flanges: Carton steel
Working Pressure: 16 bar-25bar
Burst Pressure: 48 bar
Vacuum degree: 650 mmHg
Temperature: -20 ~ 115deg; C
Max. Angular deflection: 15 deg;
Applicable Media: Air, water, sea water, weak acid, oil, alkaline, etc
