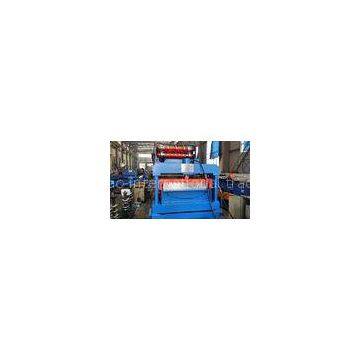

7.5KW Eaves Gutter Automatic Rolling Forming Machine Steel Sheet
Description
Our Roll Forming Machine is mainly used in building ,the steel structure warehouse,etc.And the suitable material are coating rolled steel,galvanized sheet,etc.
Technical specification
1. Profile
2. Components of line:
|
No. |
Name |
Unit |
Qty |
|
1 |
3T passive Decoiler |
set |
1 |
|
2 |
Main Machine For Roll Forming |
set |
1 |
|
3 |
PLC Control System |
set |
1 |
|
4 |
Hydraulic System |
set |
1 |
|
5 |
Run out Table |
set |
2 |
3.Technical parameter:
Thickness: 1.5-2 mm Forming speed:10-15 m/min Forming stations:18 stands Main power: 15 KW Dislocation cutting, hydraulic pressure station power 5.5 KW Wall type double row of chain transmission Material of roller: GCr15 quenching process Shaft diameter: 70 mm Cut to length, 10m±2mm PLC, Mitsubishi FX-IS series Computer operation panel, XINJIE OP320A4. Flow Chart
Put coils →→→ leveling →→→ roll forming →→→ cutting after forming →→→ output products
