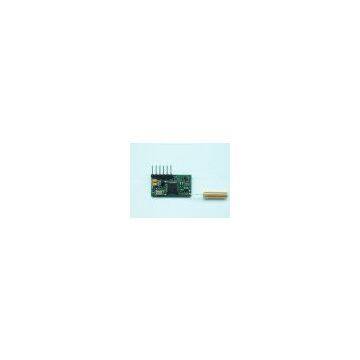

Specifications of KYL-500S
* Power output: DC 5V (customize);
* RF power: ≤10mW(customized 10~100mW);
* RF Effective Rate: 1200/2400/4800/9600/19200bps
* Interface baud rate: 1200/2400/4800/9600/19200bps optional
* Frequency Band: 433 MHz, 450MHz,470MHz, 868MHz, 915MHz or ISM others
* Interface: TTL
* Communication Mode: Half-duplex
* Offering a transparent data interface, it is suitable for any standard or non-standard user protocols
* Channel: 8(Default),16/32(customized)
* Receive current: <20mA(TTL connect)
* Receive sensitivity: -123dBm(at)1200bps);-118dBm(at)9600bps)
* Transmitting current: <40mA;
* Sleep current: <20uA;
* RF Line-of-sight Range: 600m(BER=10-5(at)9600bps);1000m(BER=10-5(at)1200bps);
* Size: 28mm×15mm×10mm(without antenna port).
