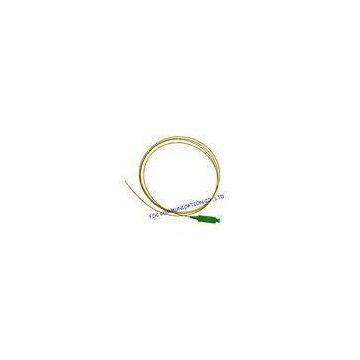

1310 / 1550nm Optical Fiber Pigtail Bend Insensitive G.657 for CATV and WAN
Fiber Optic Pigtail is a piece of cable assembled with connectors only in one side. And the other side has no connectors. Then the other side is usually spliced with other fiber optic cable. It is preinstalled in the fiber optic terminal box, ODF, fiber optic joint closure to connect the equipment. There are single mode and multimode pigtails, the wavelength of single mode pigtail is 1310/1550nm and the color is yellow in common. If multimode fiber optic pigtail, the color is orange. We also provide non-jacketed fiber optic pigtail and jacketed pigtails.
Breakout optical fiber pigtail, distribution pigtail and ribbon fan out pigtails are also available.
Customer label and OEM design can be produced as per request.
Material
Cores: simplex, multi core pigtails (6pack, 8pack, 12pack, 24pack, 48pack)
Cable Jacket: PVC, LSZH, OFNR, OFNP
Cable outer diameter: 0.9mm, 2.0mm, 3.0mm
Fiber Type: SM (9/125um), OM1(62.5/125um), OM2(50/125um), OM3, OM4
Connector Type: FC, SC, ST, LC, MU, MTRJ, MPO, E2000, SMA, FDDI, D4, DIN
End face type: UPC, APC
Descriptions
The SC fiber optic pigtails, these cables are with 9/125 single mode fiber, and connector types are PC, UPC or APC optional. The pigtails are fully compatible with industrial standards; they are good prices, fast delivery and good looking and packing.
SC optical fiber cords are widely used in fiber optic systems; especially SC single mode products are very popular. SC standard fiber optic connectors are used for telecommunications, CATV, LAN, MAN, WAN, Test & Measurement, Industry, Medical and Sensors. SC fiber optic connectors comply with IEC 61754-13 & CECC 86 115-801 standards. They are well known for general, average applications. We can supply single mode and multimode version SC, FC, LC, ST, MU, E2000, MPO fiber optic patch cords and related fiber optic components.
Features
Low insertion loss
High return loss
Excellent repeatability
Compact and anti-pull design
Precision fiber optic ferrule
High precision exact alignment
IEC Compliant
Telcordia compliant
UPC, PC or APC polished connectors
Applications
Local area networks, wide area networks
Optical Switch interface connections
Gigabit Ethernet
CATV and WAN
Testing Instrument, active device connection
Premise Installations
Telecommunication Networks
Fiber to the home
SPECIFICATIONS
|
Type |
Single Mode (typical) |
Single Mode (maximum) |
Multimode(maximum) |
|
Insertion Loss |
≤0.15dB |
≤0.3dB |
≤0.3dB |
|
Return Loss |
≥55dB |
≥50dB |
≥25dB |
|
Operating Temperature |
-40℃ to +80℃ |
-40℃ to +80℃ |
-40℃ to +80℃ |
Ordering Information
|
Cores Count |
01=simplex, 02=duplex, ..., 06=6cores, ..., 12=12cores, 24=24cores |
|
Fiber Type |
1=G652D, 2=G657A, 3=OM3,50/125um 4=OM4 5=OM1, 62.5/125um, 6=OM2, 62.5/125um |
|
Cable Outer Diameter |
L=900µm Loose or tight tube, S=2.0mm, R=3.0mm, X=others |
|
Cable Length |
0.5-20M=0.5--20m, X=Others |
|
Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
Fiber Optic Pigtail, Optical Fiber Pigtail, Fiber Pigtail, Fiber Pigtails
