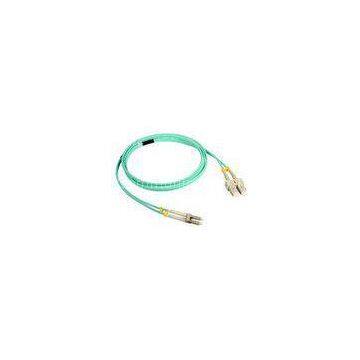

LSZH Jacket Duplex SC Fiber Optic Patch Cord for Optical Access Network
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TTI
Place of Origin:
China
Model Number:
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
ST SM Simplex Fiber Patch Cord Telecom Class and Polishing ANegotiableMOQ: 1 Set -
ST / UPC - ST Indoor Armoured Fiber Optic Patch Cord With Blue , LSZH JacketNegotiableMOQ: 1 Piece
-
FC Fiber Patch Cord With Yellow Cable , SM , MM Fiber OpticNegotiableMOQ: 1 Case
-
Outdoor Fiber Optic Patch Mode , 6core Singlemode / Multimode With PE JacketNegotiableMOQ: 1 Piece
-
Data Processing Networks Optic Patch Cord With Low Insertion Loss , Single ModeNegotiableMOQ: 1 Piece
Brand Name
TTI
Place of Origin
China
Delivery Time:in 2-4 days
Certification:ROHS, SGS
Certification:ROHS, SGS
LSZH Jacket Duplex SC Fiber Optic Patch Cord for Optical access network
Quick Details:
LC, SC, OM3, OM4 fiber patch cord Boot color: Beige, Red, Black Mode: SM, MM, OM3, OM4 Cable core: Duplex Ferrule End-face: PC, UPC Cable color: Orange, Aqua, Volient Cable diameter: 0.9mm, 2.0mm, 3.0mm Cable jacket: PVC, LSZH, OFNR, OFNPFeatures:
Guaranteed Zero Defects Insertion & Return Loss Tested Serialized & Individual Test Records Meets Telcordia Endface GeometryRequirements Custom Configurations Available at No Extra ChargeApplications:
Optical access network Telecommunication networks Fiber optic communication networks CATV, LAN, MAN, WAN, Test &MeasurementSpecification:
| Item | Single Mode | Multi Mode |
| Insertion Loss | <= 0.2dB | <= 0.3bB |
| Return Loss | PC≥50dB, UPC≥55dB, APC≥60dB | |
| Insert-pull Test | 1000 times | |
| Repeatability | <=0.1 | |
| Tensile strength | ≥10KG | |
| Operating Temperature | -40°C ~ +85°C | |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:<=1um | 127um concentricity deviations:<=3um |
| Suitable Fiber | 9/125um | 50/125um,62.5/125um |
Packing:
One piece per PE bag with stick label (we could add customer\'s logo in the label.)
Shipping:
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.) Airport to Airport: by air Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
