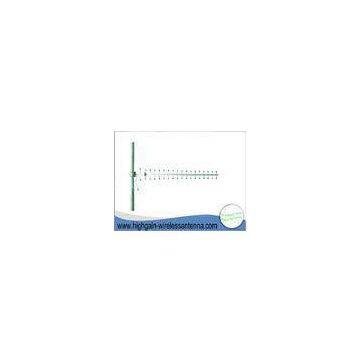

GSM 900 Mobile Telecommunication Directional Yagi Antenna 806 - 960 MHz 18 DBi
- T/T L/C D/P D/A
- 7 days
You May Like
-
550 - 750 MHz Directional Yagi TV Antenna 12 DBi With 9 Element, F Female Connector
-
Outdoor Horizontal / Vertical Directional 1.2GHZ Yagi Terminal Antenna 1100 - 1300 MHz
-
GSM1800 / PHS Directional Yagi Antenna 1710- 1880 MHz, 15 DBi, SMA Female Connector
-
Long Distance Directional Yagi Antenna , GSM 900 / 1800 PHS Antenna 12dBi
-
Long Range 2.4 GHZ Directional Yagi Antenna For Wireless Adapter 16DBI
-
Outdoor 2.4GHZ 18DBI High Gain Directional Yagi Wireless Antenna With 18 Element
Product Details
| Brand Name | Runshine | Place of Origin | China | |
| Model Number | RSY-900-18 |
Product Description
Certification:ROSH
GSM 900 Mobile telecommunication Directional Yagi Antenna 806 - 960 MHz 18 dBi
Application:
● GSM 900 Mobile telecommunication
● 900MHZ RFID System
● Repeater and Terminal antenna
Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V
Specification
|
Model NO |
RSY-900-18 |
|
Electric Spec |
|
|
Frequency rang-MHz |
806～960 |
|
Bandwidth -MHz |
154 |
|
Gain -dBi |
18 |
|
element |
18 |
|
beam width -° |
H:30 V:25 |
|
F/B Ratio-dB |
≥16 |
|
VSWR |
≤1.5 |
|
Input Impedance-Ω |
50 |
|
Polarization |
Horizontal or Vertical |
|
Max power -W |
100 |
|
Lightning protection |
DC ground |
|
Connector model |
N female or others |
|
Mechanical Specification |
|
|
Size -mm |
1293*190*54 |
|
Cable length-m |
0.3 |
|
Antenna weight-kg |
0.68 |
|
Working Temperature -°c |
-40～60 |
|
Rated Wind Velocity-m/s |
60 |
|
Clamp |
U |
|
Pole diameter -mm |
Φ40～Φ50 |
Antenna details :
Application Example :
Install demonstration
