Certification:ROSH
2.4GHZ 4G Directional Panel Antenna 10 dBi VSWR ≤1.5 For WIFI Telecommunication System
Application:
● 2.4GHZ WLAN System
● WIFI Telecommunication system
● WIMAX LTE 4G application
Feature:
● High Gain, Lower VSWR, Strongly Anti-interference
● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
Specification
|
Model NO |
RSW-2300-2700-10 |
|
Electric Spec |
|
|
Frequency rang-MHz |
2300-2700 |
|
Bandwidth -MHz |
400 |
|
Gain -dBi |
10 |
|
beam width -° |
H:60 V:45 |
|
VSWR |
≤1.5 |
|
Input Impedance-Ω |
50 |
|
Polarization |
Vertical |
|
Max power -W |
50 |
|
Lightning protection |
DC ground |
|
Connector model |
RP-SMA or others |
|
Mechanical Specification |
|
|
Size -mm |
140*120*40 |
|
Antenna weight-kg |
0.285 |
|
Working Temperature -°c |
-40～60 |
|
Rated Wind Velocity-m/s |
60 |
|
Radome color |
white |
|
Mounting way |
mount on the wall or hold in the pole |

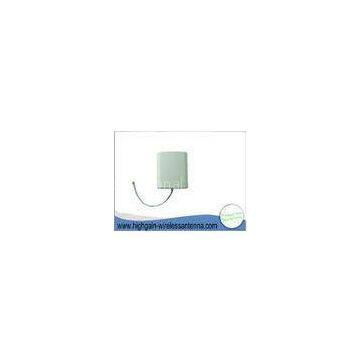

Antenna details :
Application Example :
Install demonstration
View of us ;
