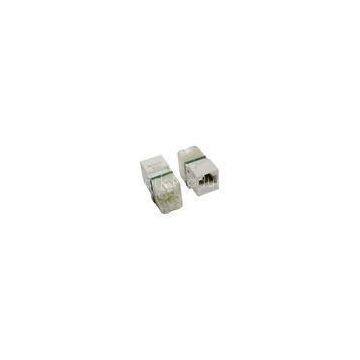

CAT5E 8p8c UTP Unshielded RJ45 Keystone Jack 180 Degree 110 IDC

CAT5E 8p8c UTP Unshielded RJ45 Keystone Jack 180 Degree 110 IDC

Quick Detail:

1.type:cat5e,UTP

cess:zin die casting

3.application:Network communications

4.standard:ISO/IEC 11801 ,ANSI/TIA/EIA-568-B

5.gender:female

6.Material:ABS

7.pin:8P8C

Specifications:

Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.

Meet TIA/EIA TSB-40

Meet ISO/IEC Generic Cabling Standard 11801

Meet CENELEC Generic Cabling Standard EN50173


Electrical:

Current rating: 1.5 Amp Max.

Voltage rating: 150 Volts

Contact resistance: 20 m-ohm

Insulation Resistance: 500M-ohm

Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min


Materials:

Housing: PC UL94V-0

IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.

PCB: FR4 1.6mm(0.04\") thickness, 2 layers

Contact: PC Ul94V-0, 0.45mm(0.018\") Diameter Phosphor bronze with 3 U\" to 50 U\" Gold plating on contact area.

Competitive Advantage:

1) From the appearance point of view, this new module is smaller and shorter.

2) This new module not only can be fitted into patch panel, but also can be fitted into mounting box.

3) From the way of termination, this new module is different from others currently sold in the market. It\'s terminated at the back of the module directly, others mostly from both sides.

4) Can increase more resistance

5) Cat5e, Cat6 and Cat6A all available.
