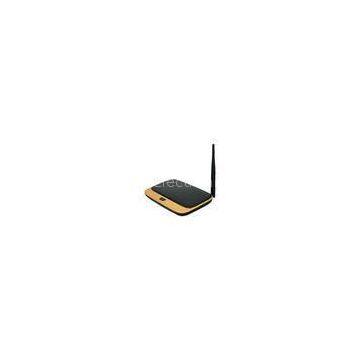

RK3288 Cortex-A17 Android Smart TV Box Quad Core 2.4G + 5G Dual Band Wifi

RK3288 Cortex-A17 Android Smart TV Box Quad Core 2.4G + 5G Dual Band Wifi thumbnail-1
RK3288 Cortex-A17 Android Smart TV Box Quad Core 2.4G + 5G Dual Band Wifi photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
RS-V3S
Contact Supplier Request Quote Chat Now
Shenzhen Rambos Electronics Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OEM
Place of Origin China
Model Number RS-V3S
Delivery Time:15days after payment be done
Certification:CE/ROHS

RK3288 Cortex-A17 Android Smart TV Box Quad Core 2.4G+5G Dual Band wifi 2G/8G Android Media Player

Description:

Quad Core RK3288,Preinstall XBMC

RAM 2GB and ROM 8GB

With own factory and Strong technical support on firmware,provide customized service including boot logo and system launcher design

With Plastic housing,logo printing is free based on 100pcs.

Specification:

CPU Type Quad Core ARM Cortex A17
Model number Rockchip RK3288 1.8 GHz
Architecture 　 HD video decoder (2160p @ 60fps), support 4K H.264 , 10bits H.265
HD video encoder (1080p @ 30fps), support H.264, VP8 ,MVC
OPENGL ES1.1/2.0/3.0, OPEN VG1.1,  OPENCL, Directx11
2D/3D GPU (Mali-T764, 500MHz)
Strong Power Manage Unit(PMU)
HDMI 1.4
DDR                 Flash               Power DDR3 2G
Nand flash 8G
Power consumption Main unit + 2.4G sender(Mouse) ≤ 700mA@5V
Operation System OS Android 4.4.2
Linux Kernel 3.10.0
2.4G 2.4G wireless mouse/keyboard
Wi-Fi WiFi IEEE 802.11 b/g/n, Built-in AP6330 WiFi(2.4G/5G)+Bluetooth 4.0 Module
DLNA Digital Living Network Alliance
Standard Applications Music MP3,WMA,WAV,OGG,AAC,FLAC,3GP…
Video Player MPEG2,MPEG4,AVI,WMV,MKV,MOV,RM,RMVB…
Gallery JPG,BMP,PNG…
Browser Internet browse
Play Store Apps in Google Play Store
Adobe Flash Player V11.1 or later
I/O USB port 1 　
USB port 2 　
USB port 3 OTG
Opcital digital audio 　
HDMI HDMI 1.4
A/V OUT 　
Micro SD card slot For Micro SD card (TF card)
Accessory Remote control USB cable
Giftbox packing HDMI cable
AC adapter AC100-240V 50/60Hz  output 5V/2A
Weight & Size machine weight 0.14kg
machine size 143MM*110MM*23MM
Packaged weight 0.583kg
Packaged size 188*155*82mm
Carton weight 6.2KG
Carton size 440*340*220mm

Competitive Advantage:

1. We are specilizing in Android IPTV Box. We have the newest technical support from our Technical team directly.
2, Based on our powerful hardware and software support, we can meet customer requirement for OEM & ODM service independently.
3. Our box are new private Aluminum housing, have full solid aluminum body that is sleek and durable, with a built in LED display!
4. All of boxes pre-installed the latest XBMC 13.2 full loaded,support XBMC customization
5.All of boxes have opened the Root right,every user is superuser

6.With dust-free workshop.all of raw material with Rohs Standard.
.
