Auto. Seat Heaters

Auto. Seat Heaters photo-1

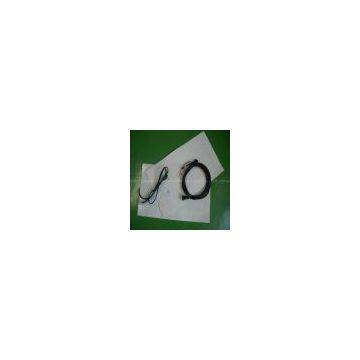

Auto. Seat Heaters photo-2
Auto. Seat Heaters photo-3
US$ 20 - 20 MOQ: 120 Poles
Key Specifications
Get Latest Price
Brand Name:
langech
Place of Origin:
China
Model Number:
EL201YJT-12V
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Brand Name langech
Place of Origin China
Model Number EL201YJT-12V

 Specifications of Car Seat Heaters (Alloy Heating Wires Series)

l        Working voltage:(10.5~15V)or(22~28V)

l        Rated current:1.8~2.5A single pad

l        Heating power:53W±3% single pad:

l        Temperature controlled:30(lowest)~70(highest)

l        Connector clip: AMP

l        guarantee period:3 years

l        size of pad:according to the request of buyer(max. 260×5480mm)



Distinctive features of Car Seat Heaters (Alloy Heating Wires Series)




1) Crimp connection are used between electrode and conductor, to avoid flaws of cold soldering, false soldering, empty soldering and electric cord exposed to view because of shrinks of connectors’ peels with heat of soldering, and between heat protector and conductor: terminal blocks, to increase bending strength between heat protector and conductor.

2) Sleeves of conductors: PET monofilament, to increase abrasion resistance of the bundles, resistance to high/low temperatures, and resistance of flame.



3) Backing paper of double-coated adhesive tape: there are 10mm of two edges of the backing uncoated adhesive, so that the backing is easily ripped open.



4) Thin film pressure sensor of human body: the circuit is completed only if the sensor is under the pressures of over 40kg (88 lb), no matter the switch is on or off, to avoid the pad idle heating when nobody on the seat.
