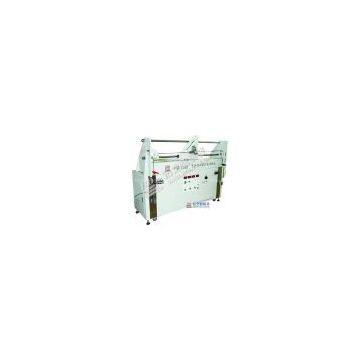

Help CenterSell HD-7302 Flexible Cord Flexibility Tester
Related Products
-
Sell HD-1850D Wire Elongation TesterNegotiableMOQ: 1 Piece -
Sell Durability of Ink Printing Tester(double Units)NegotiableMOQ: 1 Piece
-
Sell QJ84 Conductor Resistance TesterNegotiableMOQ: 1 Piece
-
Sell Hi-pot TesterNegotiableMOQ: 1 Piece
-
Sell HD-TS-2 Rope Skipping TesterNegotiableMOQ: 1 Piece
Product explanation:
This machine is been disigned and manufactured to meet the requirements of many standards such as IEC60245-2, DIN VDE0282, IEC60227-2, DIN VDE0281. It is mainly used to perform the flexible test of electric wire.
Technical parameter:
|
Power source |
AC 380V |
|
Motor power |
AC 220V,120W |
|
Carriage speed |
0.33m/s(two wheels),0.1m/s(three wheels) |
|
Carriage displacement |
1m |
|
Max machine power |
3000W |
|
Testing voltage |
AC 220V 50Hz or AC 380V 50Hz(continuously adjustable) |
|
Testing current |
2~40A(adjustable) |
|
Wheels diameter |
Two wheels flexible test:60,80,120,160,200mm Three wheels flexible test:40,45,50mm |
|
Weights |
0.5kg,1kg,2kg,3kg,7kg,14N,21N,28N |
|
Exterior dimension |
1850mm L,600mm W,1500mm H |
Standards:
IEC60245-2
DIN VDE0282
IEC60227-2
DIN VDE0281
