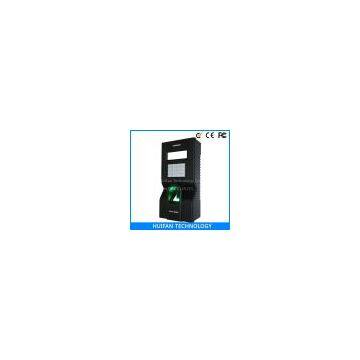

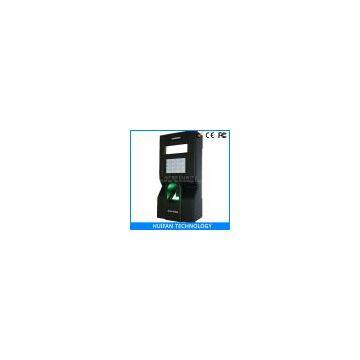

HF-F8 Keypad B&W screen finerprint access control
- 100000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
- Slim Fast Speed Gate
- 2024 China Made Unique Designed Tripod Turnstile
- China Direct Factory Made Tripod Turnstile
- China made Face Recognition Control Speed Gate
- Pedestrian gate wing gate face recognition gate Intelligent swipe card entrance and exit gate intelligent gate
- The cash register gate / entrance gate for check out / Stainless steel pipe guardrail / supermarket swing gate / turnstile gate
Product Details
Brand Name: | Neutral/HF&CCTV | Place of Origin: | China | Model Number: | HF-F8 |
Product Description
Introduction:
One touch, that’s all it takes for access control with F8 biometric reader that offer the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. Fast, reliable performance combined with affordability gives readers the competitive edge. Each reader has the capacity to store up to 2,200 fingerprint templates and 50,000 transactions. Enrolling users is fast and easy, since most of our readers have a user-friendly keypad and display. Managing our readers is also simple. All our readers are easily accessed through a TCP/IP or serial port, with the ability to automatically update and synchronize when networked together.
Features:
.1-touch 1-second employee recognition
.Capacity to store 2200 template and 50000 transactions
.No need to enter PINs
.Supports 50 time zones, 5 groups and 10 unlock combinations
.Tamper-proofs switch and alarm outputs
.Request-to-exit and alarm contacts
.Operates stand-alone without a computer
.TCP/IP, serial and Wiegand interfaces
.Real-time 1-touch data export to 3rd party hosted & non-hosted applications
.Audio-Visual indications for acceptance & rejection of valid and invalid fingerprints
.SDK available for OEM customers and software developers
Connection Diagram:
Specifications:
Fingerprint Capacity |
2,200 templates |
Transaction Capacity |
50,000 |
Hardware Platform |
ZEM500 |
Communication |
RS232/485, TCP/IP, USB-host |
Access Control Interface for |
3rd party electric lock, door sensor, exit button, alarm, Door Bell |
Standard Functions |
SMS,DLST, Webserver, Workcode, Anti-passback |
Optional Functions |
ID, Mifare, Scheduled-Bell, 9 digit user ID, Self-Service Query, Automatic Status Switch, Soap, printer |
Wiegand Signal |
Input & Output |
Display |
B&W LCD Screen |
Power Supply |
12V DC |
Operating Temperature |
0 ℃- 45 ℃ |
Operating Humidity |
20%-80% |
Fingerprint Access Control HF-F8 |
Specifications |
|
>>Reads fingerprint, password, optional ID/Mifare card >>Stores 2,200 fingerprint templates and 50,000 transaction >>Anti-passback function >>SDk is available for OEM customers and software developers |
Various of access control terminals are on sale.
Be free to contact us and welcome to visit our online store: /
Looking forward to your feedback.
Regards!
