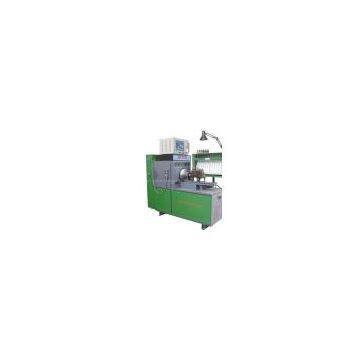

JHDS-3 Search&digital Display Type Test Bench
US$ 5800 - 5800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
JHDS-3 search&digital display type
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
JHDS-2 Digital Instrument Type Test BenchUS$ 5800 - 5800MOQ: 1 Set -
JHDS-6 Screen Display Oil Quantity Type Test BenchUS$ 13000 - 13000MOQ: 1 Metric Ton
-
JHDS-5 Working Station Type Test BenchUS$ 5800 - 5800MOQ: 1 Piece
-
JHDS-4 Digital Instrument Type Test BenchUS$ 10000 - 10000MOQ: 1 Set
-
Electronic In-line Pump Test BenchNegotiableMOQ: 1 Set
Place of Origin
China
Model Number
JHDS-3 search&digital display type
This industrial control computer type test bench adopts TAIWAN industrial control mainboard,industrial level hi-speed SCM technology and high reliability anti-disturbance technology ,has stable and reliable work performance.With Chinese-English menu,it can show all debugging interface. Can inquire about technical parameters of fuel injection pump,print or save the debugging date of fule injection pump.
Technical Parameters Table
| TYPE | CYL | POWER | r/min | RPM preset | TEMP | Air supply + - |
DC supply 12V/24V |
Advance angle |
Computer | Tested pumps | Function |
| JHDS-1 | 12 | 7.5 | 0-4000 | √ | √ | √ | √ | √ | √ | All pumps | 1-15 |
| 11 | 0-3000 | ||||||||||
| 15 | |||||||||||
| 18.5 | |||||||||||
| 22 | |||||||||||
| JHDS-2 | 12 | 7.5 | 0-4000 | √ | √ | √ | √ | √ | Ο | All pumps | 1-13 |
| 11 | 0-3000 | ||||||||||
| 15 | |||||||||||
| 18.5 | |||||||||||
| 22 | |||||||||||
| JHDS-3 | 12 | 7.5 | 0-4000 | √ | √ | √ | √ | √ | √ | All pumps | 1-15 |
| 11 | 0-3000 | ||||||||||
| 15 | |||||||||||
| 18.5 | |||||||||||
| 22 | |||||||||||
| JHDS-4 | 12 | 7.5 | 0-4000 | √ | √ | √ | √ | √ | × | All pumps | 1-13 |
| 11 | 0-3000 | ||||||||||
| 15 | |||||||||||
| 18.5 | |||||||||||
| 22 | |||||||||||
| JHDS-5 | 12 | 7.5 | 0-4000 | √ | √ | √ | √ | √ | √ | All pumps | 1-15 |
| 11 | 0-3000 | ||||||||||
| 15 | |||||||||||
| 18.5 | |||||||||||
| 22 | |||||||||||
| JHDS-6 | 12 | 7.5 | 0-4000 | √ | √ | √ | √ | √ | √ | All pumps | 1-15 |
| 11 | 0-3000 | ||||||||||
| 15 | |||||||||||
| 18.5 | |||||||||||
| 22 |
“√”With the function，“×”Does not have the function，“Ο”The optional feature。
“√” has “×”no “Ο”optional
Fuel pump test bench main function
| 1、Test each cylinder's oil supply capacity at various rotation speeds. | 9、Test the interior pressure of distribution pumps. |
| 2、Statically check the start point and interval angle of oil supply of each cylinder. | 10、Test the negative pressure performance of pneumatic speed regulators. |
| 3、Check and adjust the performance of mechanical speed regulators. | 11、Test the oil supply pressure of distribution pump |
| 4、Test the electromagnetic valve of distribution pump . | 12、Measure the oil-return quantity of distribution pump. |
| 5、Check the performance of pneumatic speed regulators | 13、Self-suction joint |
| 6、Test the sealing performance of injection pump. | 14、Print(optional) |
| 7、Check the performance of pressure compensators | 15、Database(optional) |
| 8、Measure the advance angle of advance device | 16、Test the tack bar travel(optional) |
