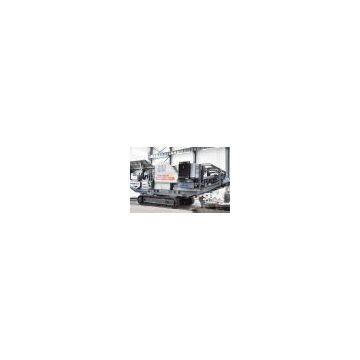

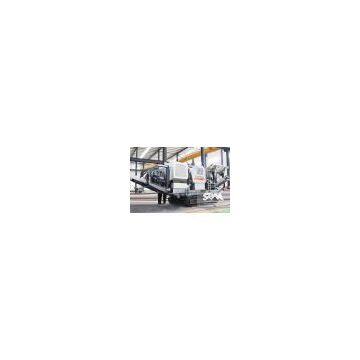

SBM's Modernization Hydraulic-driven Track Mobile Plant
- 100 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
- Gold mining jaw crusher equipment for sale, stone crusher machine
- First-rate high efficiency SZZ series self-centering vibrating screen with ISO 9001 Certificate
- China leader manufacturer ZHAOXIN high efficiency thickener
- Ore benefication thickener machine, dewatering thickener price
- china high quality center drive thickener, thickening equipment
- Shandong Province high efficiency center drive thickener NZ-12, thickening machine
Product Details
Brand Name: | SBM | Place of Origin: | China | Model Number: | YG935E69/YG1138E71L/YG1138EW86L/YG1138FW1315ⅡL |
Product Description
Mobile crushers are loaded on their own crawler tracks or towed by truck horse when transported over longer distances to a new location. With tremendous flexibility and compact design, customers can take this machine directly to rock crushing plants or demolition sites for powerful, handy recycling of reusable construction materials, concrete debris, sand and gravel with economic efficiency.
Features:
By adopting the advanced hybrid power design, it saves 30%~50% oil consumption.
Employing fully rigid board structure, the chassis features high strength, low contact pressure, good passing ability and good adaptability to hilly and marsh areas.
Operating system with imported direct servo technique can be easily and precisely controlled and travel in a infinite variable speed.
The stock bin baffle and side belt conveyor can be turnover by adjusting hydraulic cylinder, convenient for transport and maintenance.
Application:
Hydraulic-driven track mobile plant are mostly use for crushing and screening in many areas, such as road construction, bridge construction, building, mining, metallurgical and energy industries, etc. Commonly materials like granite, marble, basalt, iron ore, copper ore, coal, slag and others are easily to be crushed by the crushing plant.
Technical Data:
Crawler Type Mobile Cone Crushert/Screeing plant:
Model Parameter |
YG935E69 |
YG1138E71L |
YG1138EW86L |
YG1138FW1315ⅡL |
Feeder Model |
GZD960×3500 |
GZD1100×3800 |
GZD1100×3800 |
GZD1100×3800 |
crusher Model |
PE600X900 |
PE750X1060 |
PEW860 |
PFW-1315II |
B800X8.5M |
B1000X9M |
B1000X9M |
B1000X9M |
|
Side of the belt conveyor Model |
B450X3M |
B500X3.5M |
B500X3.5M |
B500X3.5M |
Power(kw) |
180 |
250 |
200 |
300 |
TransportationDimension(mm) (L×W×H) |
11900×3100×3650 |
11900×3100×3650 |
13300×3100×4500 |
13300×3100×4500 |
Jobs Dimension(mm) (L×W×H) |
12100×3100×4100 |
12100×3100×4100 |
13500×3100×5100 |
13500×3100×4800 |
Crawler Type Mobile Cone Crushert/Screeing plant:
Table 1:
Model Parameter |
YCS160L |
YHP220L |
3YZS1548AL |
3YZS1848AL |
3YZS1860AL |
Equipment Model |
Cs160 |
HPC220 |
3YZS1548 |
3YZS1848 |
3YZS1860 |
Belt feeder Model |
GLD-12×4/15 |
GLD-12×4/15 |
|
|
|
Feeding conveyor |
|
|
B1000×4M |
B1000×4M |
B1200×4.5M |
Main belt Model |
B1000X9M |
B1000X9M |
B800X9M |
B1000×5M |
B1000×5M |
Belt conveyor under the screen |
|
|
B800×4.5M |
B1000×4.5M |
B1000×5.5M |
The left discharging belt conveyor |
|
|
B500×7.3M |
B500×7.3M |
B500×7.3M |
The right discharging belt conveyor1 |
|
|
B500×7.3M |
B500×7.3M |
B500×7.3M |
The right discharging belt conveyor2 |
|
|
B500×7.3M |
B500×7.3M |
B500×7.3M |
Power(kw) |
270KW |
330KW |
120KW |
120KW |
120KW |
TransportationDimension(mm) (L×W×H) |
12000× |
12500× |
12500× |
13500× 3300 |
13500× 3300 |
3240 ×3700 |
3240 ×3900 |
3240×3900 |
×3900 |
×3900 |
|
Received a high degree of materiall |
2900 |
3100 |
3100 |
2400 |
2400 |
Table 2:
Model Parameter |
3YZS1548BL |
3YZS1848BL |
3YZS1860BL |
Equipment Model |
3YZS1548 |
3YZS1848 |
3YZS1860 |
Belt feeder Model |
|
|
|
Feeding conveyor |
B1200×3M |
B1200×3M |
B1200×3M |
Main belt Model |
B1000×8M |
B1200×8M |
B1200×9M |
Belt conveyor under the screen |
B1000×7M |
B1000×7M |
B1000×8M |
The left discharging belt conveyor |
B500×7.3M |
B500×7.3M |
B500×7.3M |
The right discharging belt conveyor1 |
B500×7.3M |
B500×7.3M |
B500×7.3M |
The right discharging belt conveyor2 |
B500×7.3M |
B500×7.3M |
B500×7.3M |
Power(kw) |
120KW |
120KW |
120KW |
TransportationDimension(mm) (L×W×H) |
12500× |
13500× 3300 |
13500× 3300 |
3240 ×3900 |
×3900 |
×3900 |
|
Received a high degree of materiall |
|
|
|
