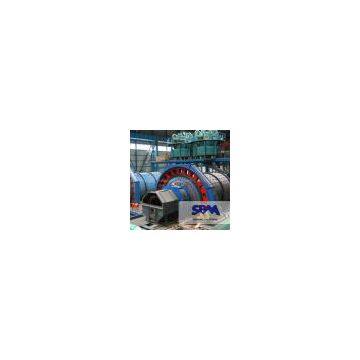

Help CenterHow to Choose Ball Mill
Related Products
-
T130X Reinforced Ultrafine Mill for Various Stone and RockUS$ 100 - 100MOQ: 1 Set -
Best Selling LM Vertical Grinding MillsUS$ 100 - 100MOQ: 1 Set
-
LM Vertical Grinding MillsNegotiableMOQ: 1 Set
-
MTM Trapezium Grinder/iron Ore Mining Equipment for Sale MalaysiaUS$ 100 - 100MOQ: 1 Set
-
The Latest Version of MTW Milling MachineUS$ 100 - 100MOQ: 1 Set
Ball mills are used primary for single stage fine grinding, regrinding, and as the second stage in two stage grinding circuits. According to the need of customers, ball mill can be either wet or dry designs. Ball mills have been designed in standard sizes of the final products between 0.074 mm and 0.4 mm in diameter.
Features:
Suitable for grinding material with high hardness
The shape of the final products is circular
No pollution for the powder with ceramic ball
Stable performance Easy installation
The capacity and fineness can be adjusted by adjusting the diameter of the ball.
Application:
The ball mill is key equipment in grinding industry, especially in mineral ore dressing plants. It is widely used for the cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and etc.
Technical Data:
|
Model |
Rotate Speed (r/min) |
Grinding Media Weight (T) |
Grinding Media Weight (T) |
Discharge Size (mm) |
Output(t/h) |
Motor Power (KW) |
|
Ф900×1800 |
36~38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
|
Ф900×3000 |
36 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
|
Ф1200×2400 |
36 |
3 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30 |
|
Ф1200×3000 |
36 |
3.5 |
≤25 |
0.074-0.4 |
1.6-5 |
37 |
|
Ф1200×4500 |
32.4 |
5 |
≤25 |
0.074-0.4 |
1.6-5.8 |
55 |
|
Ф1500×3000 |
29.7 |
7.5 |
≤25 |
0.074-0.4 |
2-5 |
75 |
|
Ф1500×4500 |
27 |
11 |
≤25 |
0.074-0.4 |
3-6 |
110 |
|
Ф1500×5700 |
28 |
12 |
≤25 |
0.074-0.4 |
3.5-6 |
130 |
|
Ф1830×3000 |
25.4 |
11 |
≤25 |
0.074-0.4 |
4-10 |
130 |
|
Ф1830×4500 |
25.4 |
15 |
≤25 |
0.074-0.4 |
4.5-12 |
155 |
|
Ф1830×6400 |
24.1 |
21 |
≤25 |
0.074-0.4 |
6.5-15 |
210 |
|
Ф1830×7000 |
24.1 |
23 |
≤25 |
0.074-0.4 |
7.5-17 |
245 |
|
Ф2100×3000 |
23.7 |
15 |
≤25 |
0.074-0.4 |
6.5-36 |
155 |
|
Ф2100×4500 |
23.7 |
24 |
≤25 |
0.074-0.4 |
8-43 |
245 |
|
Ф2100×7000 |
23.7 |
26 |
≤25 |
0.074-0.4 |
8-48 |
280 |
|
Ф2200×4500 |
21.5 |
27 |
≤25 |
0.074-0.4 |
9-45 |
280 |
|
Ф2200×6500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
14-26 |
380 |
|
Ф2200×7000 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-28 |
380 |
|
Ф2200×7500 |
21.7 |
35 |
≤25 |
0.074-0.4 |
15-30 |
380 |
|
Ф2400×3000 |
21 |
23 |
≤25 |
0.074-0.4 |
7-50 |
245 |
|
Ф2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
8.5-60 |
320 |
|
Ф2700×4000 |
20.7 |
40 |
≤25 |
0.074-0.4 |
12-80 |
400 |
|
Ф2700×4500 |
20.7 |
48 |
≤25 |
0.074-0.4 |
12-90 |
430 |
|
Ф3200×4500 |
18 |
65 |
≤25 |
0.074-0.4 |
According to the process condition |
800 |
Table 1: Technical Parameters of Wet Type and Rolling Bearing supporting the Ball Mill
|
Model |
Shell Size(mm) |
Effective Volume(m3) |
Grinding Media Weight(t) |
Rotate Speed(r/min) |
Power(Kw) |
Discharge Size(㎜) |
Output(t/h) |
Remark |
|
Dia×Length |
||||||||
|
GMQG1530 |
1500×3000 |
4 |
8 |
27.6 |
75 |
0.8-0.074 |
12-2.8 |
380V |
|
GMQG1535 |
1500×3500 |
4.6 |
11 |
27.6 |
75-90 |
0.8-0.074 |
14-3.4 |
380V |
|
GMQG1830 |
1800×3000 |
6.5 |
13 |
25.3 |
132 |
0.8-0.074 |
21-4.8 |
380V |
|
GMQG1835 |
1800×3500 |
7.58 |
16 |
25.3 |
160 |
0.8-0.074 |
25-5.8 |
380V |
|
GMQG1840 |
1800×4000 |
8.65 |
17.3 |
25.3 |
185 |
0.8-0.074 |
28-6.6 |
380V |
|
GMQG1845 |
1800×4500 |
9.75 |
19.5 |
25.3 |
210 |
0.8-0.074 |
31-7.2 |
380V |
|
GMQG2122 |
2100×2200 |
6.7 |
14.7 |
23.8 |
160 |
0.8-0.074 |
24-5.3 |
380V |
|
GMQG2130 |
2100×3000 |
9.2 |
17 |
23.8 |
185 |
0.8-0.074 |
26-6.0 |
380V |
|
GMQG2136 |
2100×3600 |
11 |
19 |
23.8 |
210 |
0.8-0.074 |
29-6.5 |
380V |
|
GMQG2140 |
2100×4000 |
12.2 |
20.5 |
23.8 |
220 |
0.8-0.074 |
32-7.2 |
380V |
|
GMQG2145 |
2100×4500 |
13.8 |
22 |
23.8 |
250 |
0.8-0.074 |
36-8.1 |
380V |
|
GMQG2424 |
2400×2400 |
9.8 |
20 |
22.8 |
220 |
0.8-0.074 |
32-6.6 |
380V |
|
GMQG2430 |
2400×3000 |
12.2 |
25 |
22.8 |
250 |
0.8-0.074 |
38-7.5 |
380V |
|
GMQG2436 |
2400×3600 |
14.6 |
30 |
22.8 |
280 |
0.8-0.074 |
42-8.5 |
380V |
|
GMQG2440 |
2400×4000 |
16.2 |
33 |
22.8 |
355 |
0.8-0.074 |
47-9.5 |
380V |
|
GMQG2445 |
2400×4500 |
18.2 |
37 |
22.8 |
400 |
0.8-0.074 |
55-10.5 |
380V |
|
GMQG2721 |
2700×2100 |
10.7 |
24 |
21.7 |
280 |
3.0-0.074 |
84-8.5 |
6-10KV |
|
GMQG2727 |
2700×2700 |
13.8 |
29 |
21.7 |
315 |
3.0-0.074 |
105-9.0 |
6-10KV |
|
GMQG2730 |
2700×3000 |
15.3 |
32.5 |
21.7 |
355 |
3.0-0.074 |
120-10 |
6-10KV |
|
GMQG2736 |
2700×3600 |
18.4 |
39 |
21.7 |
400 |
3.0-0.074 |
145-12 |
6-10KV |
|
GMQG2740 |
2700×4000 |
20.5 |
43 |
21.7 |
450 |
3.0-0.074 |
159-13 |
6-10KV |
|
GMQG2745 |
2700×4500 |
23 |
50 |
21.7 |
500 |
3.0-0.074 |
180-15 |
6-10KV |
|
GMQG3231 |
3200×3100 |
22.65 |
46.9 |
18.6 |
500 |
3.0-0.074 |
182-16 |
6-10KV |
|
GMQG3236 |
3200×3600 |
26.2 |
52 |
18.6 |
560 |
3.0-0.074 |
190-19 |
6-10KV |
|
GMQG3240 |
3200×4000 |
29.2 |
57 |
18.6 |
630 |
3.0-0.074 |
210-22 |
6-10KV |
|
GMQG3245 |
3200×4500 |
32.8 |
65 |
18.6 |
710-800 |
3.0-0.074 |
235-29 |
6-10KV |
|
GMQG3254 |
3200×5400 |
39.2 |
81.6 |
18.6 |
800-1000 |
3.0-0.074 |
280-35 |
6-10KV |
|
GMQG3640 |
3600×4000 |
35.6 |
75 |
17.3 |
800 |
3.0-0.074 |
230-25 |
6-10KV |
|
GMQG3645 |
3600×4500 |
40.8 |
88 |
17.3 |
1000 |
3.0-0.074 |
259-29 |
6-10KV |
|
GMQG3650 |
3600×5000 |
45.3 |
96 |
17.3 |
1120 |
3.0-0.074 |
288-35 |
6-10KV |
|
GMQG3660 |
3600×6000 |
54.4 |
117 |
17.3 |
1250-1500 |
3.0-0.074 |
310-38 |
6-10KV |
|
GMQG3685 |
3600×8500 |
79 |
144 |
17.3 |
1800 |
3.0-0.074 |
450-50 |
6-10KV |
Table 2: Technical Parameters of Wet Type Over-Flow and Rolling Bearing supporting the Ball Mill
|
Model |
Shell Size(mm) |
Effective Volume(m3) |
Grinding Media Weight(t) |
Rotate Speed(r/min) |
Power(Kw) |
Discharge Size(㎜) |
Output(t/h) |
Remark |
|
Dia×Length |
||||||||
|
GMQY1530 |
1500×3000 |
4 |
8.4 |
27.6 |
75 |
0.8-0.074 |
11-2.6 |
380V |
|
GMQY1535 |
1500×3500 |
4.6 |
10 |
27.6 |
75-90 |
0.8-0.074 |
13.2-3.0 |
380V |
|
GMQY1830 |
1800×3000 |
6.5 |
12 |
25.3 |
110-132 |
0.8-0.074 |
20-4.5 |
380V |
|
GMQY1835 |
1800×3500 |
7.58 |
15 |
25.3 |
132-160 |
0.8-0.074 |
23-5.0 |
380V |
|
GMQY1840 |
1800×4000 |
8.65 |
16 |
25.3 |
160-185 |
0.8-0.074 |
25-6.0 |
380V |
|
GMQY1845 |
1800×4500 |
9.75 |
18 |
25.3 |
185-210 |
0.8-0.074 |
28-6.8 |
380V |
|
GMQY2122 |
2100×2200 |
6.7 |
14.7 |
23.8 |
160 |
0.8-0.074 |
22-5.0 |
380V |
|
GMQY2130 |
2100×3000 |
9.2 |
17 |
23.8 |
185 |
0.8-0.074 |
25-5.8 |
380V |
|
GMQY2136 |
2100×3600 |
11 |
19 |
23.8 |
210 |
0.8-0.074 |
28-6.0 |
380V |
|
GMQY2140 |
2100×4000 |
12.2 |
20.5 |
23.8 |
220 |
0.8-0.074 |
30-7.0 |
380V |
|
GMQY2145 |
2100×4500 |
13.8 |
22 |
23.8 |
250 |
0.8-0.074 |
34-8.0 |
380V |
|
GMQY2424 |
2400×2400 |
9.8 |
18.8 |
22.8 |
210 |
0.8-0.074 |
30-6.2 |
380V |
|
GMQY2430 |
2400×3000 |
12.2 |
23 |
22.8 |
250 |
0.8-0.074 |
34-6.6 |
380V |
|
GMQY2436 |
2400×3600 |
14.6 |
25 |
22.8 |
280 |
0.8-0.074 |
40.5-7.9 |
380V |
|
GMQY2440 |
2400×4000 |
16.2 |
28 |
22.8 |
315 |
0.8-0.074 |
45-8.7 |
380V |
|
GMQY2445 |
2400×4500 |
18.2 |
31 |
22.8 |
355 |
0.8-0.074 |
50-9.8 |
380V |
|
GMQY2721 |
2700×2100 |
10.7 |
20 |
21.7 |
280 |
3.0-0.074 |
76-6.0 |
6-10KV |
|
GMQY2727 |
2700×2700 |
13.8 |
25.5 |
21.7 |
315 |
3.0-0.074 |
98-7.8 |
6-10KV |
|
GMQY2730 |
2700×3000 |
15.3 |
28 |
21.7 |
355 |
3.0-0.074 |
108-8.8 |
6-10KV |
|
GMQY2736 |
2700×3600 |
18.4 |
34 |
21.7 |
355-400 |
3.0-0.074 |
130-10.5 |
6-10KV |
|
GMQY2740 |
2700×4000 |
20.5 |
37 |
21.7 |
400-450 |
3.0-0.074 |
144-11.5 |
6-10KV |
|
GMQY2745 |
2700×4500 |
23 |
42.5 |
21.7 |
500 |
3.0-0.074 |
180-13 |
6-10KV |
|
GMQY3231 |
3200×3100 |
22.65 |
22.65 |
18.6 |
450 |
3.0-0.074 |
164-14.4 |
6-10KV |
|
GMQY3236 |
3200×3600 |
26.2 |
26.2 |
18.6 |
500 |
3.0-0.074 |
171-17.1 |
6-10KV |
|
GMQY3240 |
3200×4000 |
29.2 |
29.2 |
18.6 |
560 |
3.0-0.074 |
190-20 |
6-10KV |
|
GMQY3245 |
3200×4500 |
32.8 |
61 |
18.6 |
630 |
3.0-0.074 |
228-22 |
6-10KV |
|
GMQY3254 |
3200×5400 |
39.3 |
73 |
18.6 |
710 |
3.0-0.074 |
270-26 |
6-10KV |
|
GMQY3640 |
3600×4000 |
35.6 |
67 |
17.3 |
710 |
3.0-0.074 |
210-20 |
6-10KV |
|
GMQY3645 |
3600×4500 |
40.8 |
76 |
17.3 |
800-1000 |
3.0-0.074 |
233-26 |
6-10KV |
|
GMQY3650 |
3600×5000 |
45.3 |
86 |
17.3 |
1120 |
3.0-0.074 |
260-31.5 |
6-10KV |
|
GMQY3660 |
3600×6000 |
54.4 |
102 |
17.3 |
1250 |
3.0-0.074 |
280-34 |
6-10KV |
|
GMQY3685 |
3600×8500 |
79 |
131 |
17.3 |
1500 |
3.0-0.074 |
400-45 |
6-10KV |
Send Inquiry to This Supplier
