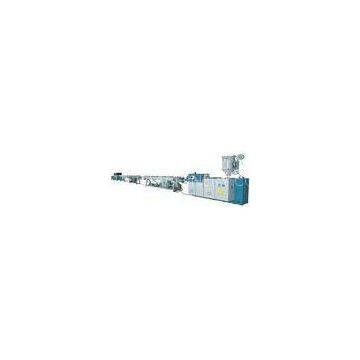

Precision Plastic Pipe Extrusion Line With PLC Controlling System , PE-RT Plastic Pipe Making

Delivery Time:45 days after perpayment

Precision Plastic Pipe Extrusion Line With PLC Controlling System , PE-RT Plastic Pipe Making


The PE-RT Plastic pipe making machine is mechanotronics, with the advantages of:
1) high production efficiency;
2) reasonable structure compact;
3) convenient operation and maintenance
4) long use life etc.



Description:


This advanced PP-R,PE-RT,PE,PEX pipe production line can produce PP-R  pipe,PE-RT  pipe,PEX pipe. Adopting the latest Germany techniques, we developed high-efficient extruder based on the special character of  PP-R,PEX, equipped with the high torque reducer,newly designed barrel with slot,LTM high-efficient screw etc. We really achieve better plasticization with low temperature. This advanced PP-R,PE-RT,PE,PEX pipe production machine mainly consists of controlling system,extruder,die,calibration system,haul-off and cutting device,printer,stacking device and winder.  The special designed spiral basket structure of the extrusion die, ensures the flow distribution equally.  The calibration system and cooling system guarantee the high quality of the plastic pipes. Equipped with different extrusion dies, screws and downstream line, the extrusion line can also produce PE, ABS,PE-RT and PEX pipes. The advanced machine equipped with PLC system and touch screen, is highly automatic with better reliability and stability.

Specifications:

Model	SJGZ-63	SJGZ-160
Extruder	SJ65	SJ90
Pipe range(mm)	16-63	75-160
Screw diameter(mm)	65	90
L/D ratio	33:1	33:1
Max output(kg/h)	~120	~300
Linear speed(Max,m/min)	12	4
Main motor power(kw)	37	110

Competitive Advantage:
1) Special high-efficiency single screw extruder ensuring even and stable plasticization
2) Bush structure for barrel feeding part
3) Specially-designed spiral moulds
4) High torsion gearbox, strong hardness and high smoothness gears.
5) PLC controlling system for selection to improve the automatic control standard.
6) High-precision temperature controller and particularly-designed air fans

Applications:
The advanced PP-R,PE-RT,PE,PEX pipe making machine can produce PP-R pipe which is non-toxic,healthy,heat-resistant and have good performance of warm keeping, it is convenient for welding and can also be recycled. PEX pipe has good character of high and low temperature resistant. Compared with PEX, PE-RT don\'t need crosslink but can be recycled and convenient for processing with the character of heat-resistant and better stability. Adding two more extruders, the line can produce glass-fiber reinforced pipe.
