Product Details
| Brand Name | Vians | Place of Origin | China | |
| Model Number | VI-380B |
Product Description
Certification:CE/ROHS/FCC/MA

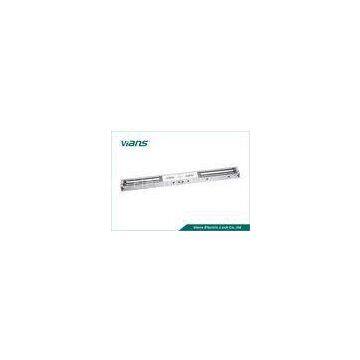

CE 5 years warrranty 12V 800lbs Electric Magnetic Lock for double wooden door
Product Overview
An electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet and an armature plate used for access control door locks.
By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.
Unlike an electric strike access control door lock a magnetic lock has no interconnecting parts and is therefore not suitable for high security applications because it is possible to bypass the lock by disrupting the power supply.
The whole system includes electric lock,power suply,access controller,exit button,door bell or RFID cards.
Specification
| Product Parameter | Parameter Description |
| Size | 570L*55W*29H(mm) |
| Armature Plate Dimension | 190L*45W*11H(mm) |
| Holding Force | 380kg*2(800Lbs*2) |
| Input Voltage | 12 or 24VDC |
| Current | 12V/500mA or 24V/250mA |
| signal output | No |
| Operating Temp | -10~+55℃(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 2.7KG |
Feature
Installation drawing
Product mounting bracket
Wiring
Electromagnetic Lock Trouble and Shooting
